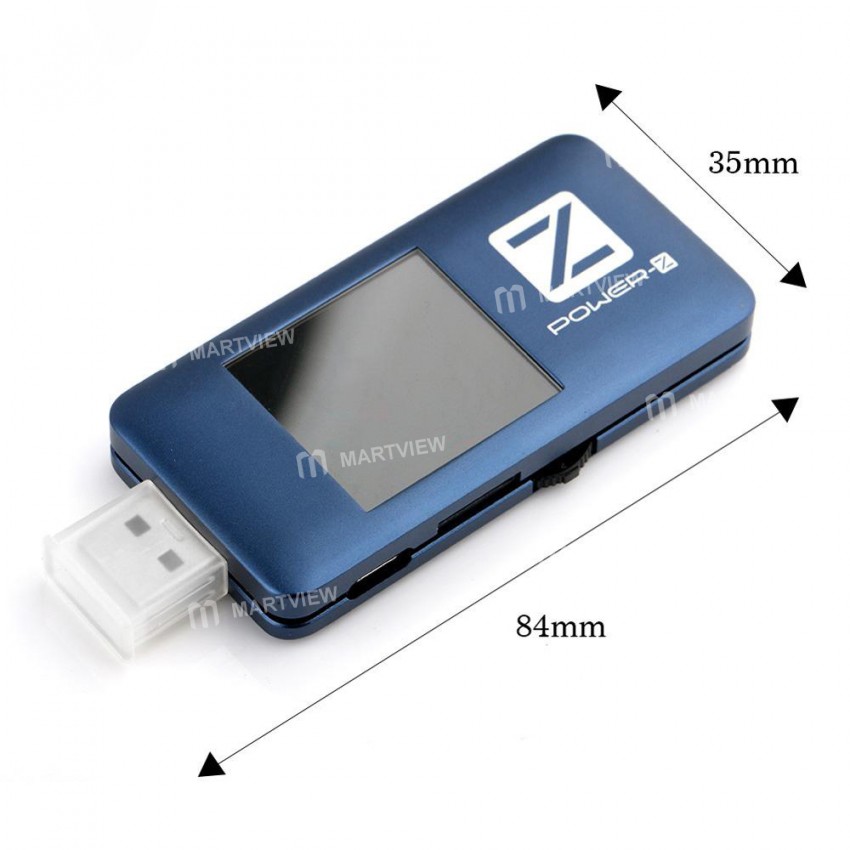

ChargerLAB Power-Z FL001 Super USB PD Power Charging Detector

ChargerLAB Power-Z FL001 Super USB PD Power Charging Detector

Function:

• Display voltage, current, power, mAh, mWh

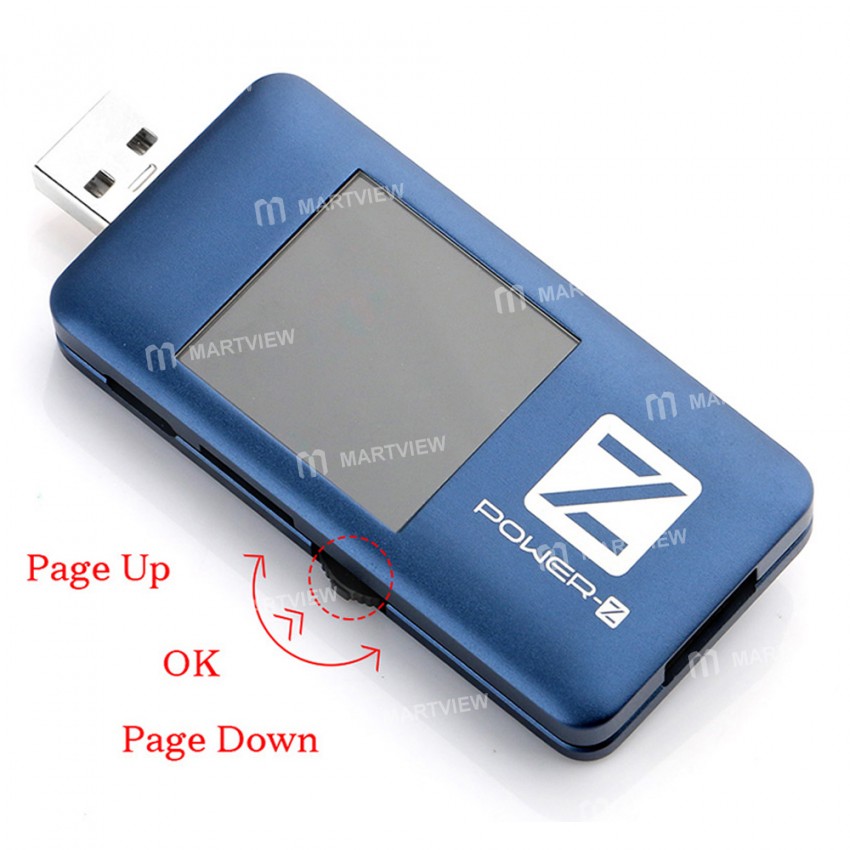

• Press the menu button can be transferred to the recording interface, you can set it to store a variety of different capacity and energy data

• Each stored data can be deleted and marked

• Set the recording time interval and maximum capacity

• Automatic run of the rule set, current threshold setting

• End time setting

• Display the information interface

• Test line resistance function

• It will be measured wire into the tester, followed by a load, The resistance will always beat until the resistance is stable, The degree is the size of the line resistance, and there are GOOD evaluations, to let you know the wire is good/bad

• You can set the waveform display refresh rate, the higher the refresh rate, the faster the display

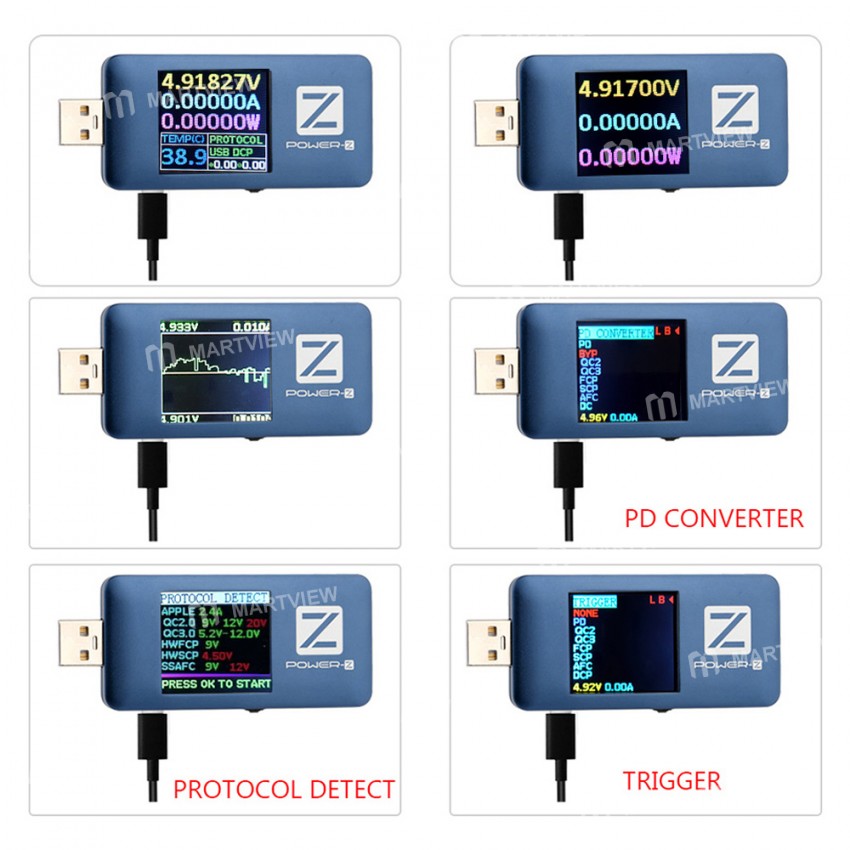

• Plug in the charger, and the automatic display D + and D-voltage, The following shows the charger supports the charging protocol

• Press the menu button, which automatically triggers quick charge voltage

Package includes:

• 1 x Charging Detector
