Power-Z MF001 MFi Cable Tester for Apple Data Cable / Voltage Current / Transformer Test

Power-Z MF001 MFi Cable Tester for Apple Data Cable/Voltage Current/Transformer Test

Features:

• ARM BASE high-speed MCU processor

• It can detect the voltage and current supported by various types of charging transformers and detect the power consumption of the mobile phone.

• Insert the DUT to start the product test mode and provide the test results in time

• High-definition display screen and sound prompt function

• You can connect the computer to the POWER Z official website to download the latest version of the software for an online upgrade, small size, high quality, and easy to carry

• Provides a power-saving mode that increases standby time

• The front is a pure black design style, with an acrylic panel on the outer layer, which looks very low and stable

• The front side is equipped with a large LCD screen with a length of 64.5 mm and a width of 39 mm. The large-screen display can show more and more complete test information to users, and bring users visual enjoyment beyond the reach of common test tools

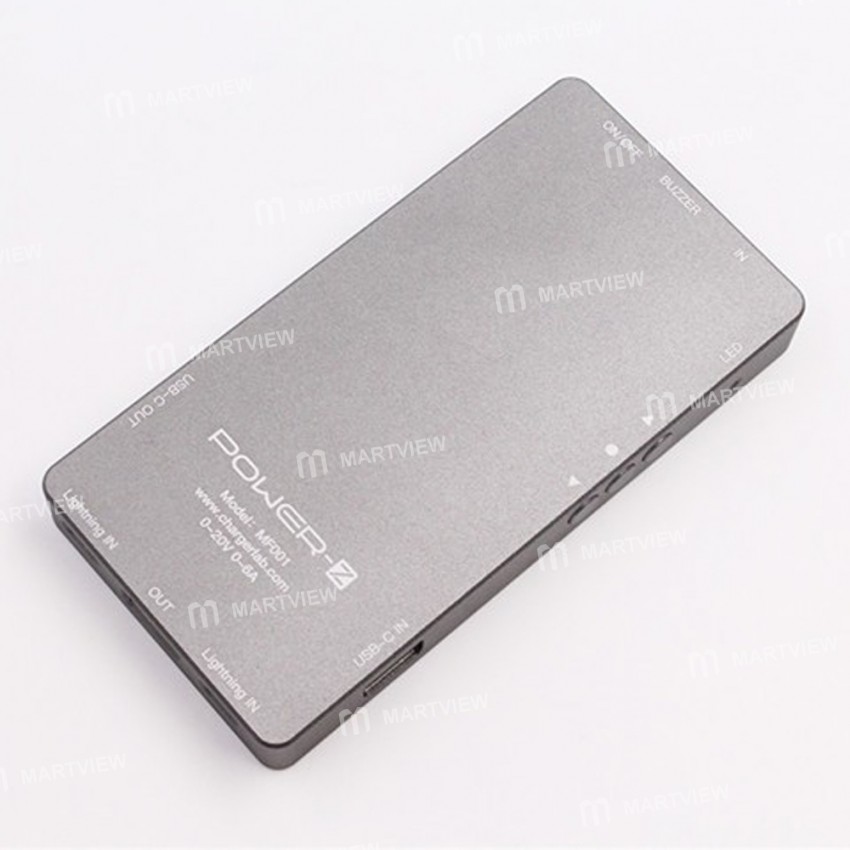

• The main part of the shell is made of a whole piece of aluminum alloy material and is made by an integrated forming process. It is full of materials and has a heavy feel

• The shell is treated with anodic oxidation and grinding, which makes the feel of the whole product very delicate, and also plays a role in skid resistance and scratch resistance

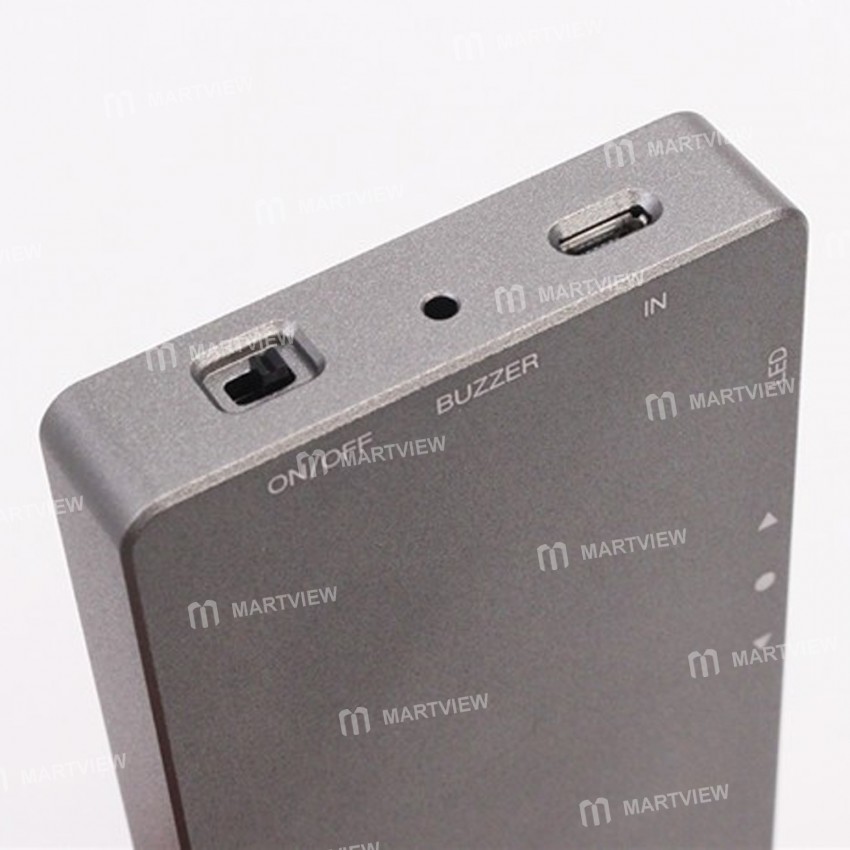

• MF001 has a switch, a buzzer, and a micro USB interface, which can be used to charge devices or to connect computers for firmware updates

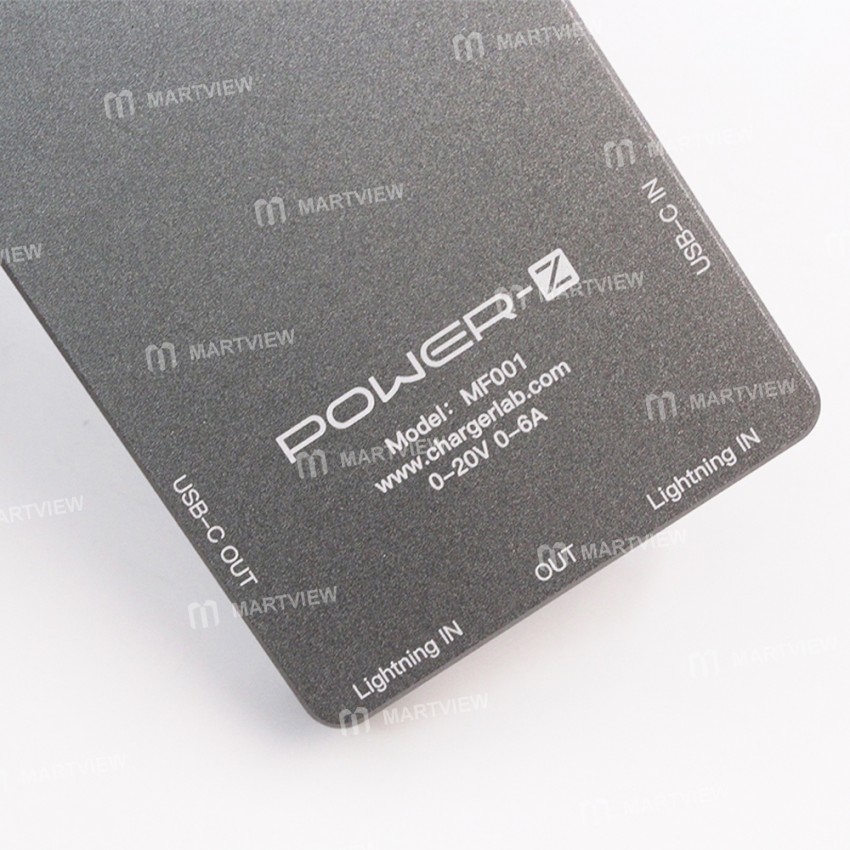

• At the bottom are two Lightning interfaces and USB-A interfaces

• The Lightning interface is mainly used to test MFi cables and USB-A interfaces, which can be used to connect loads with other test functions

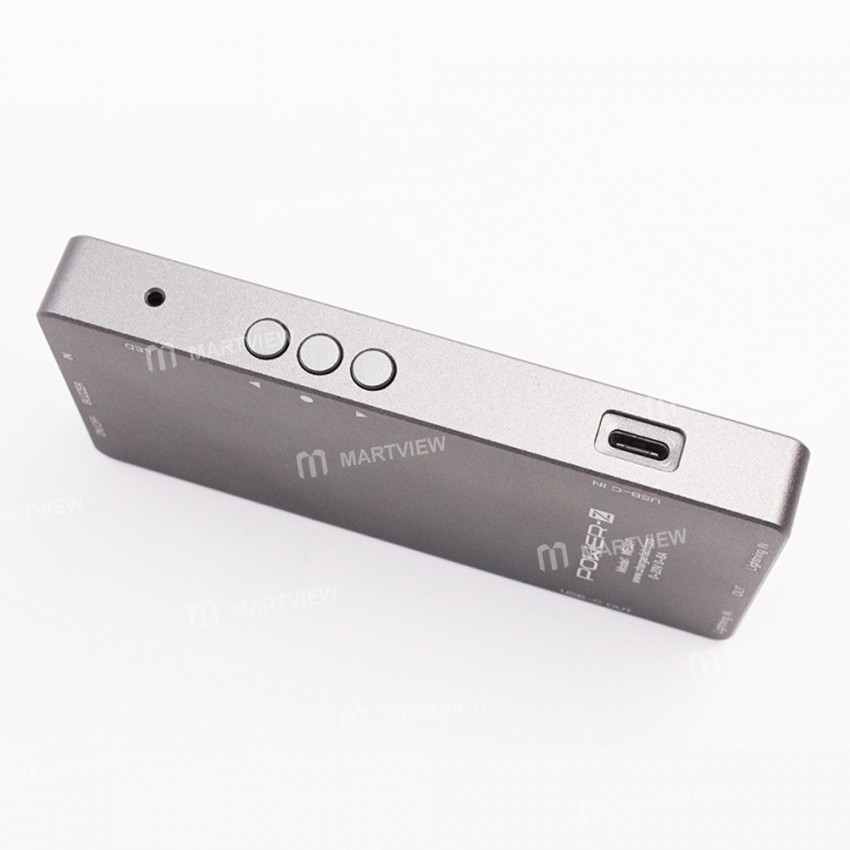

• The charging status indicator, three function selection keys, and USB-C input interface are distributed in turn on the side, the other side is the USB-C output interface

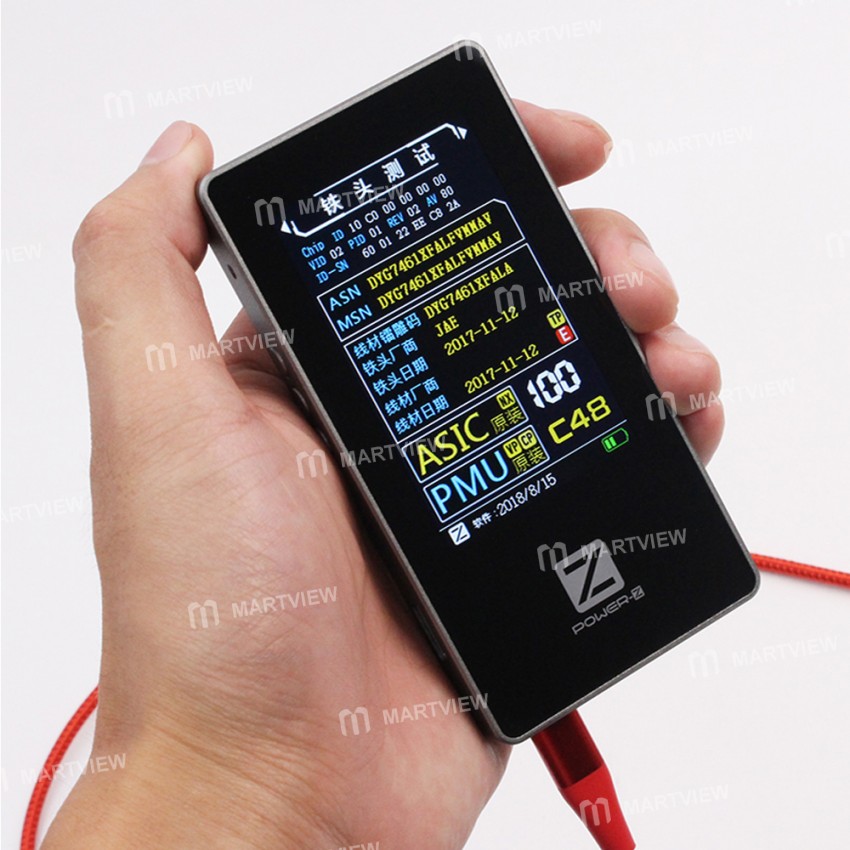

• The interfaces can display the authentication serial number type, authentication chip type, switch chip, score, and other information of the Lightning header

• At present, this testing function can support the testing of the Lightning head of Apple, Lightning head of platform system, Lightning head of shanzhai, and Lightning head of C100, C48, C52, C68, E75, etc. The testing range is very wide and the precision is very high

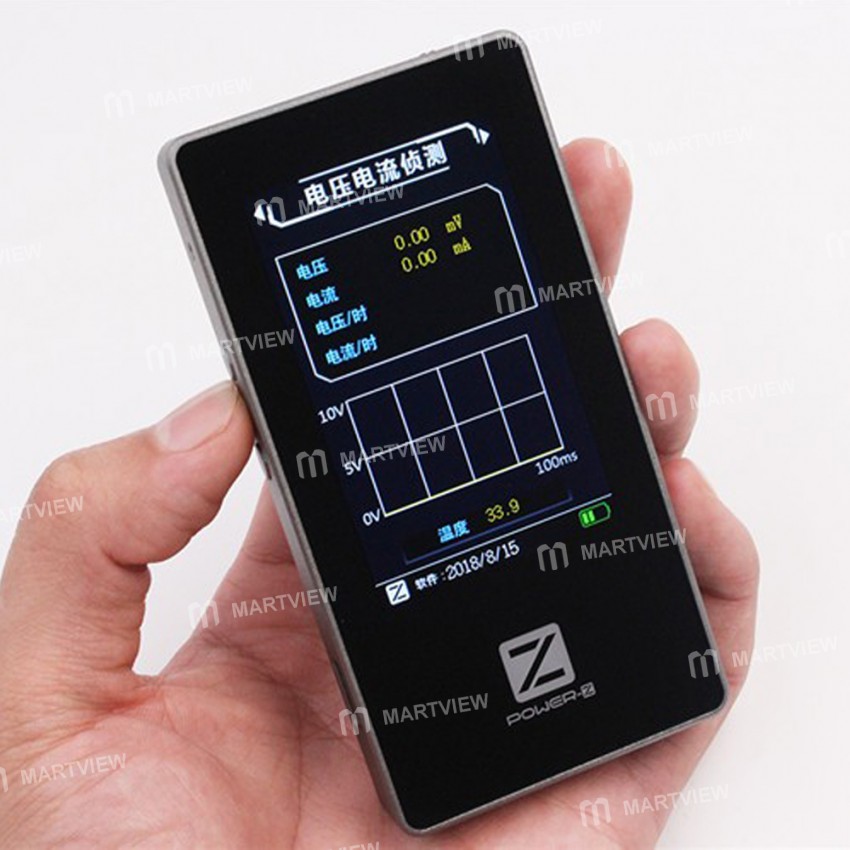

• The voltage and current detection interface, can test voltage and current, and display the corresponding curve

• Transformer test interface, which currently supports QC2.0 protocol and USB PD protocol testing

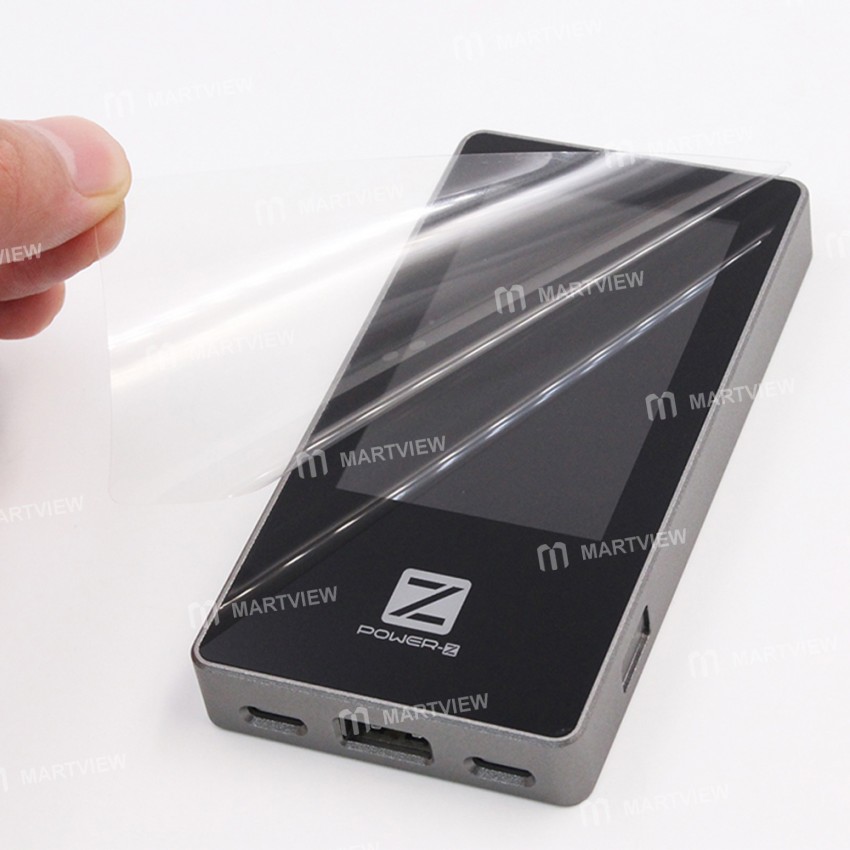

• When the product leaves the factory, a protective film is affixed on the front part, which can be torn off according to the demand when it is used

Package includes:

• 1 x Tester
