Relife XA3 Pro Multi-function Type-C & USB Professional Grade USB Intelligent Detector

Relife XA3 Pro Multi-function Type-C & USB Professional Grade USB Intelligent Detector

Features:

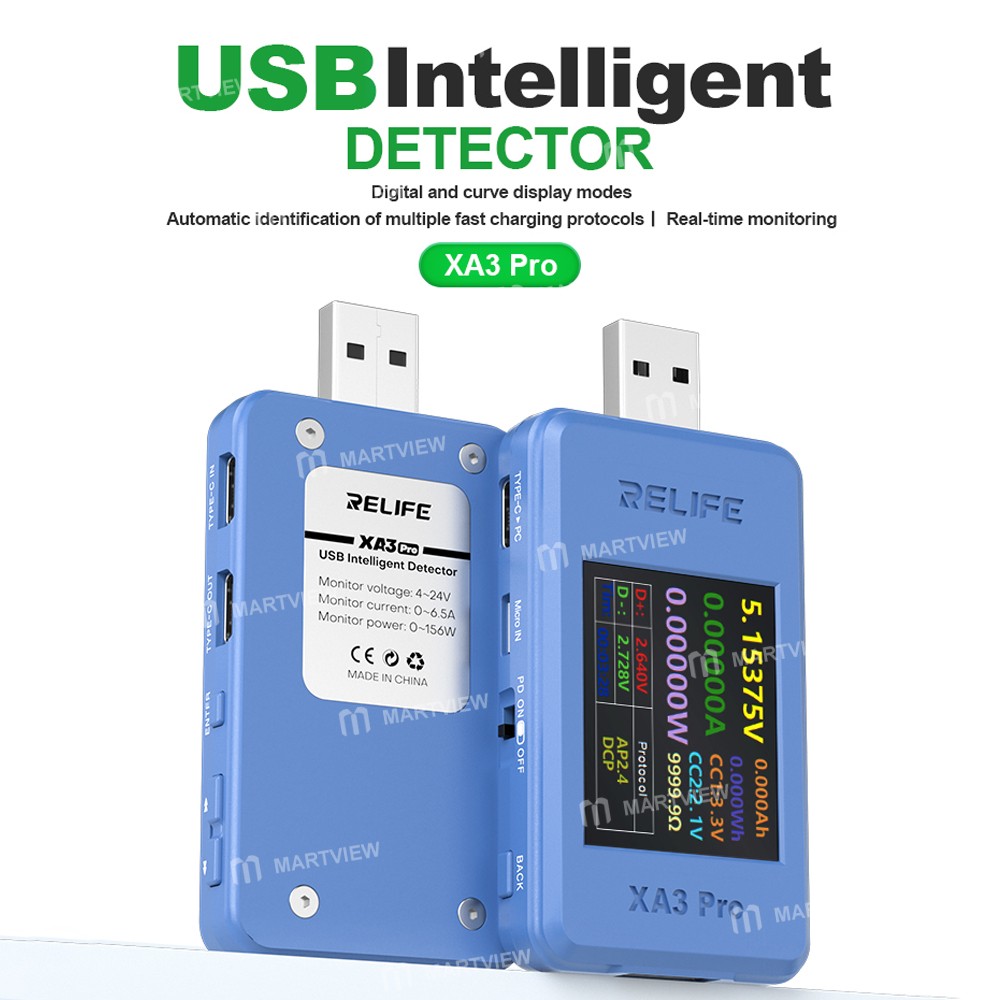

• XA3 Pro USB intelligent detector, automatic identification, compatible with multiple devices and multiple fast charging protocols

• Digital and curve display modes, automatic identification of multiple fast charging protocols, real-time monitoring

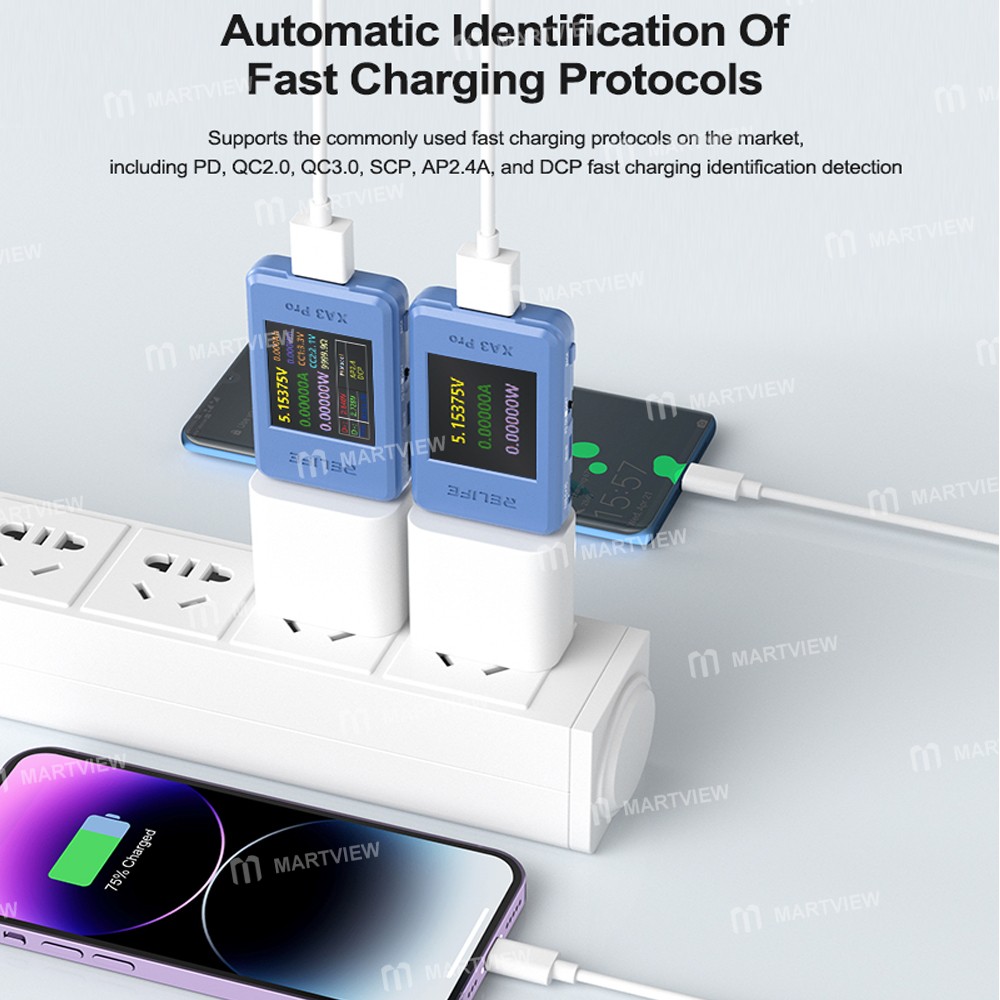

• Automatic identification of fast charging protocols supports the commonly used fast charging protocols on the market, including PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP fast charging identification detection

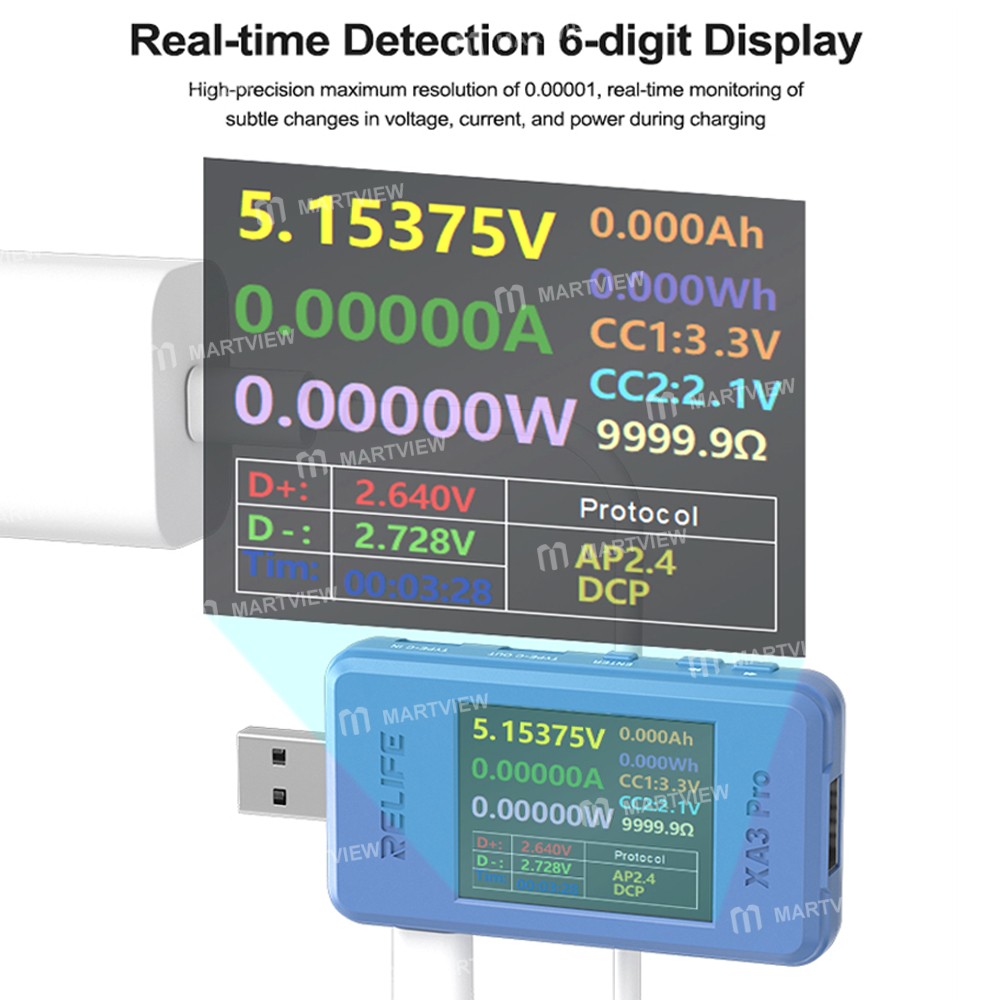

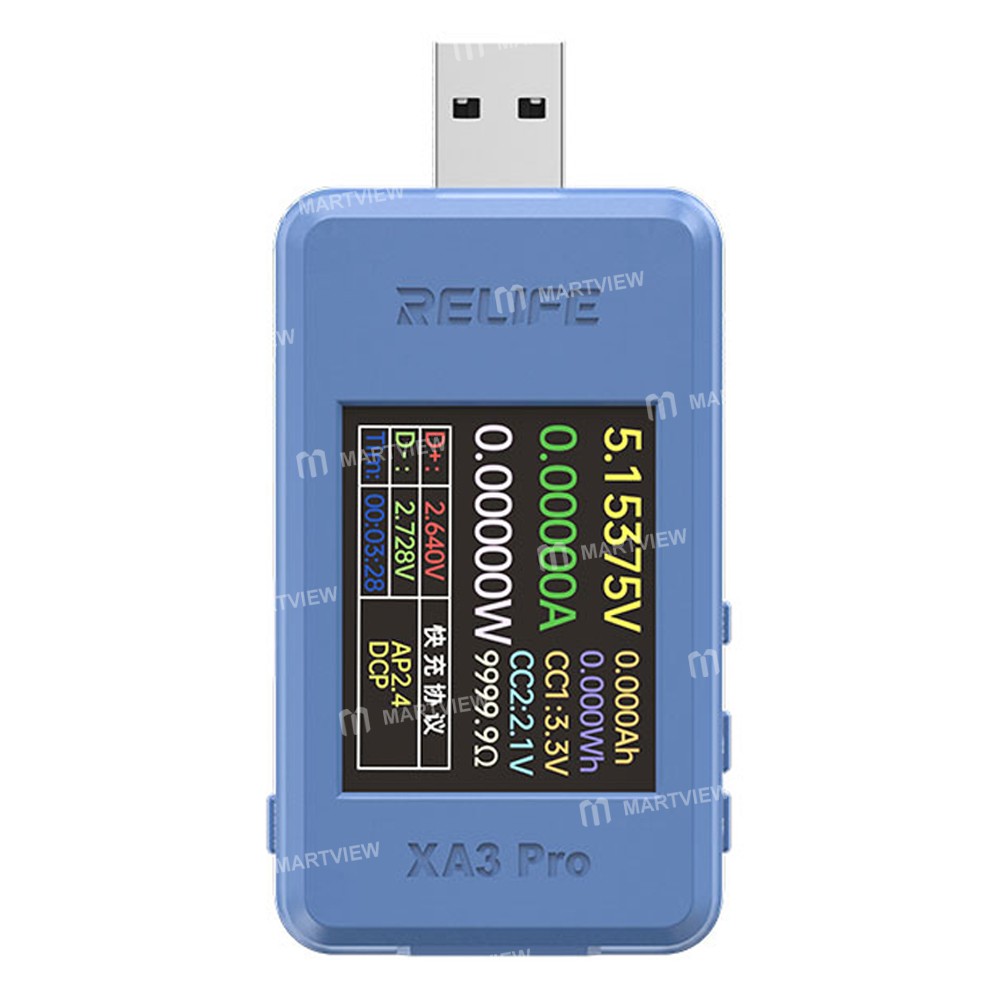

• Real-time detection 6-digit display, high-precision maximum resolution of 0.00001, real-time monitoring of subtle changes in voltage, current, and power during charging

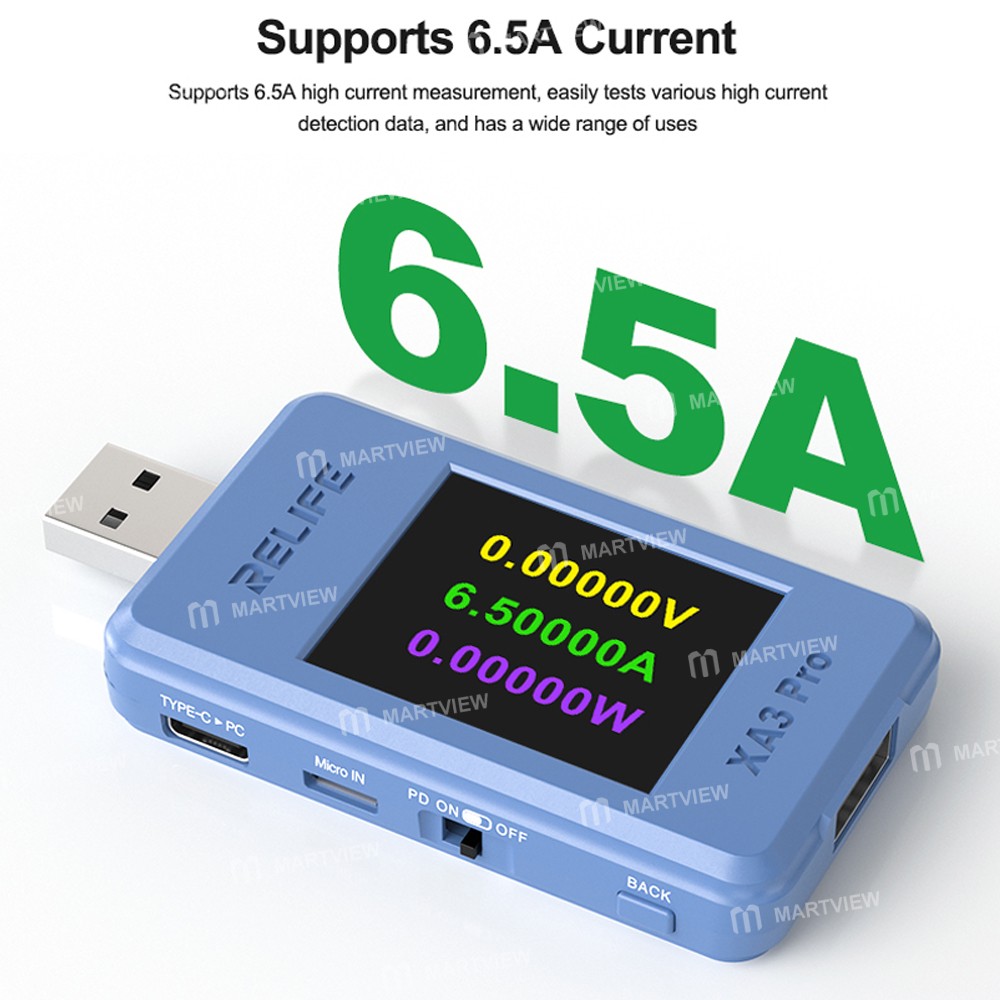

• Supports 6.5A high current measurement, easily tests various high current detection data, and has a wide range of uses

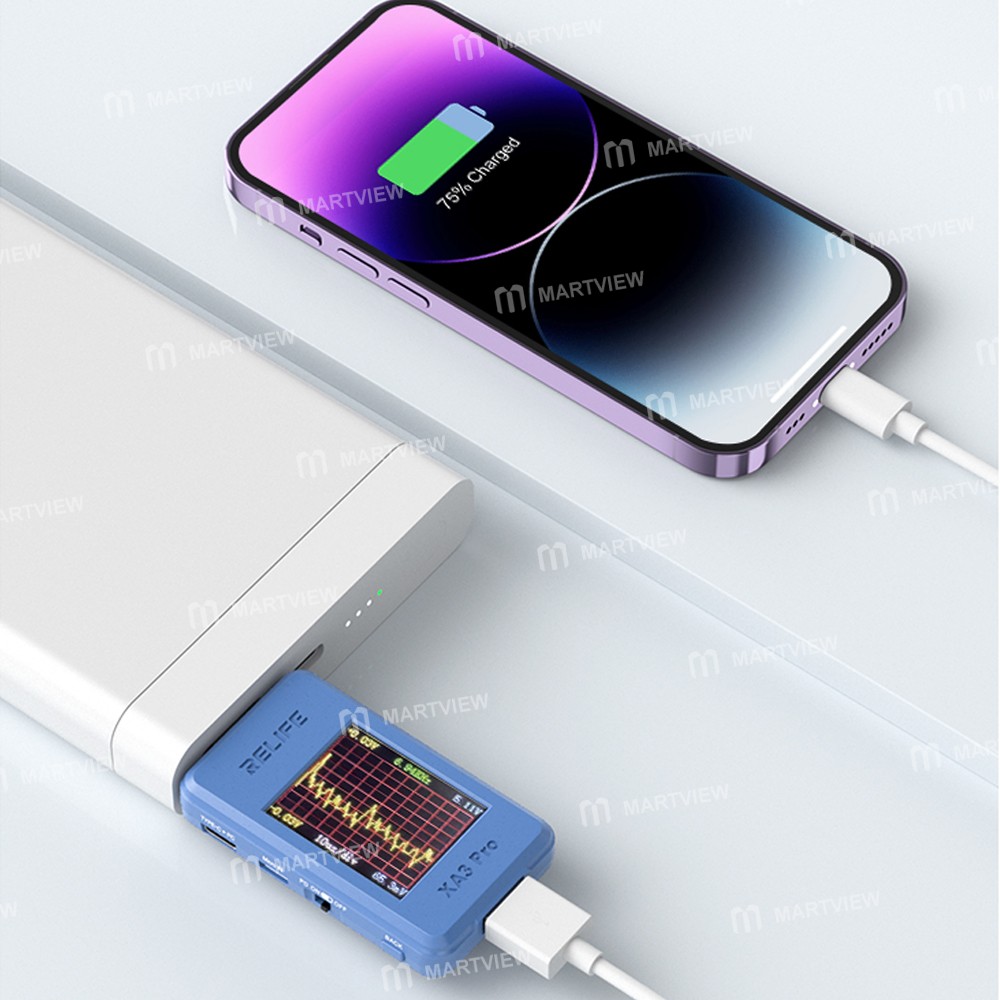

• Ripple voltage and current curve display, equipped with a 1.77-inch high-definition display, one screen with multiple displays, and a long press to flip the display, the data is clear at a glance

• Test all kinds of USB/Type-C digital devices, easily test various chargers, laptops, mobile phones, Type-C digital devices, etc., quickly identify multiple parameters, and display multiple parameters on one screen

Specification:

• Brand: Relife

• Product name: USB smart tester

• Model: XA3 Pro

• Net weight: 27.5g

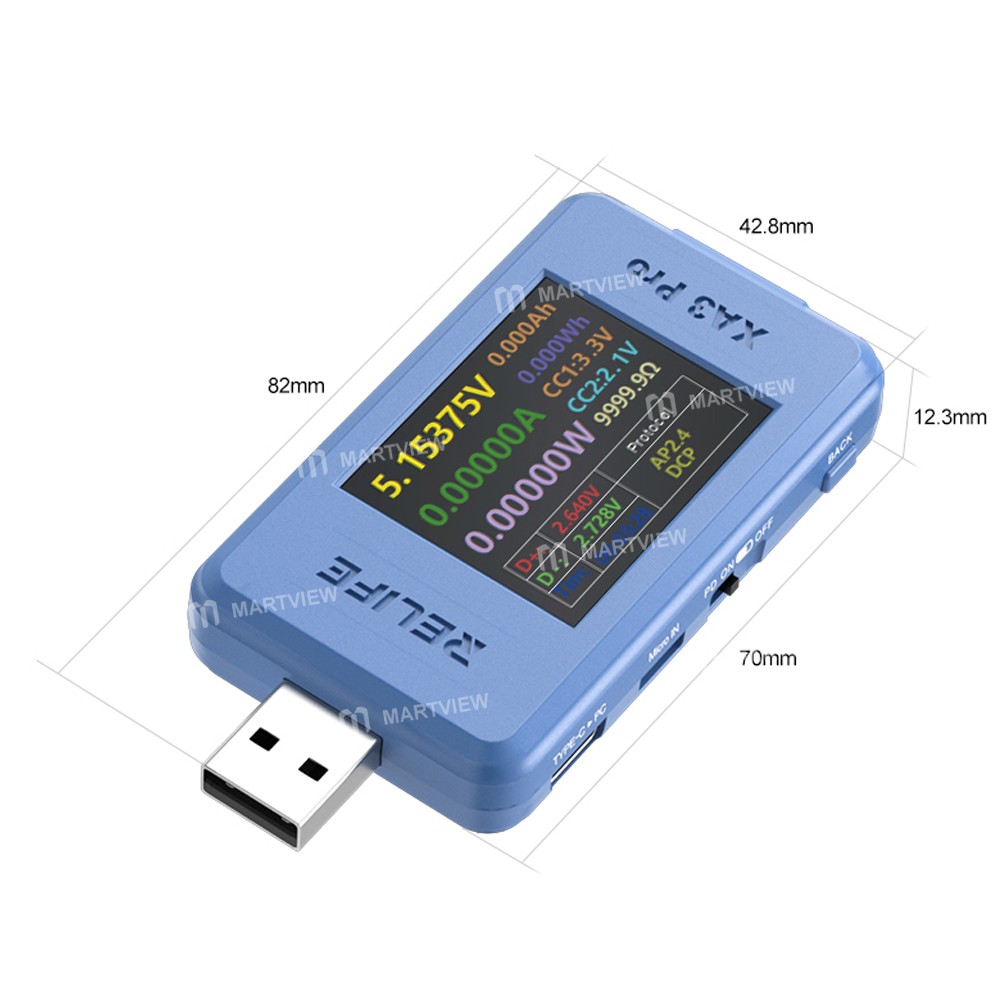

• Product size: 82*42.8*12.3mm

• Packing size: 66.5*112.5*19mm

• Voltage range: 4~24V

• Current range: 0~6.5A

• Power range: 0~156W

• D+/D-voltage range: 0~3.3V

• Capacity range: 0~9999.99Ah

• Power consumption range: 0~ 9999.99Wh

• Cable internal resistance range: 0-9999.99Ω

• Resolution: 0.00001(V/A/W)

• Sampling rate: 3.2Msps

• Display: 1.77-inch TFT LCD

Package includes:

• 1 x USB Intelligent Detector
