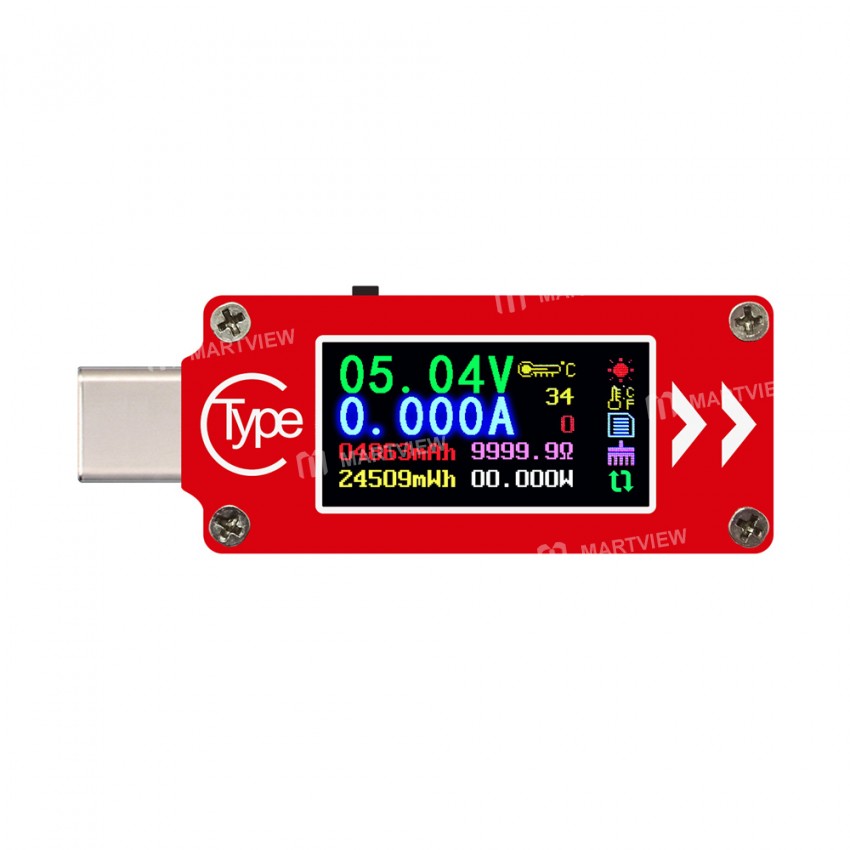

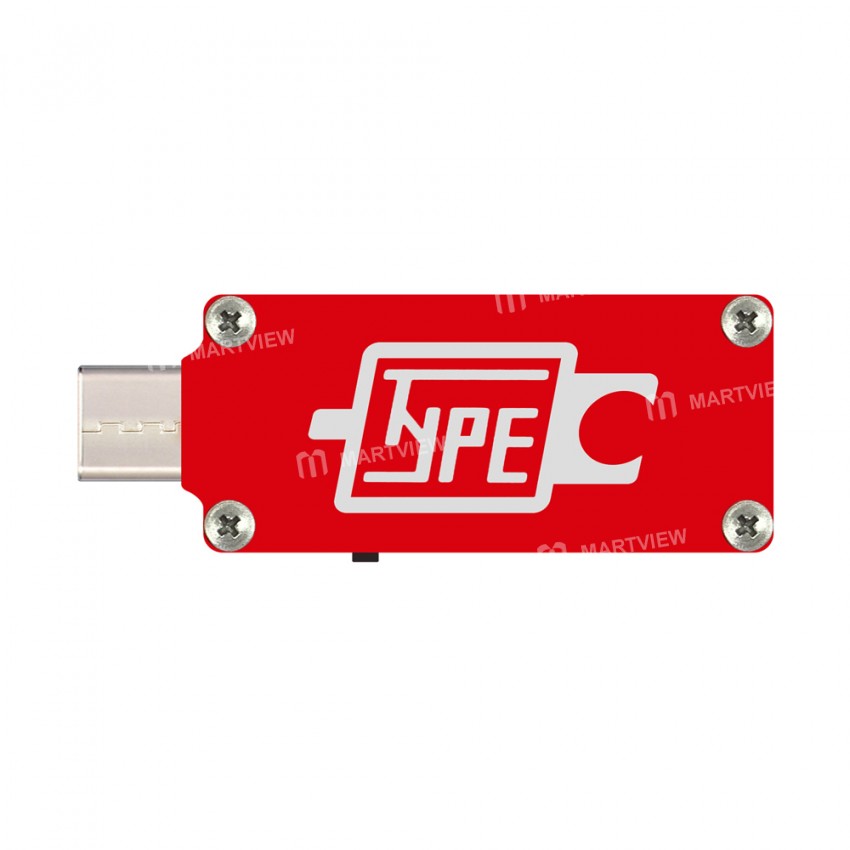

TC64 USB Type-C Power Voltage Current Meter Tester Multimeter

TC64 USB Type-C Power Voltage Current Meter Tester Multimeter

Specification：

• Product Model: TC64

• Display screen: 0.96 Inch colorful LCD display

• Voltage measurement range: 3.70-30V

• Voltage measurement resolution: 0.01V

• Current measurement range: 0-4A

• Current measurement resolution: 0.001A

• Capacity accumulation range: 0-99999mAh

• Voltage measurement accuracy: ±(0.8％+4digits at 25℃)

• Current measurement accuracy: ±(1％+4 digits, at 25℃)

• Load impedance range: 1Ω-9999.9Ω

• Power measurement range: 0-120W

• Temperature range: -0℃~80℃/32℉~176℉

• Working temperature range: 0~45℃/32℉~113℉

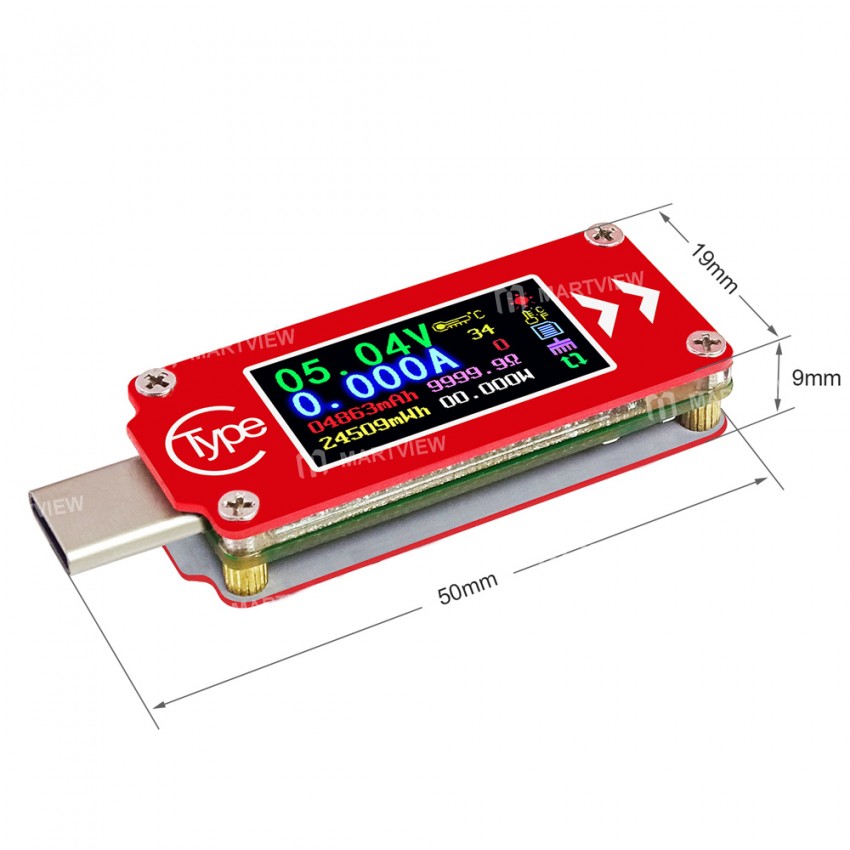

• Product size: 50mmx19mmx9mm

• Refresh rate: 2Hz

• Quick charge recognition mode: QC2.0, QC3.0, APPLE 2.4A/2.1A/ 1A/0.5A, Android DCP

Note:

1. The product current only flows from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.

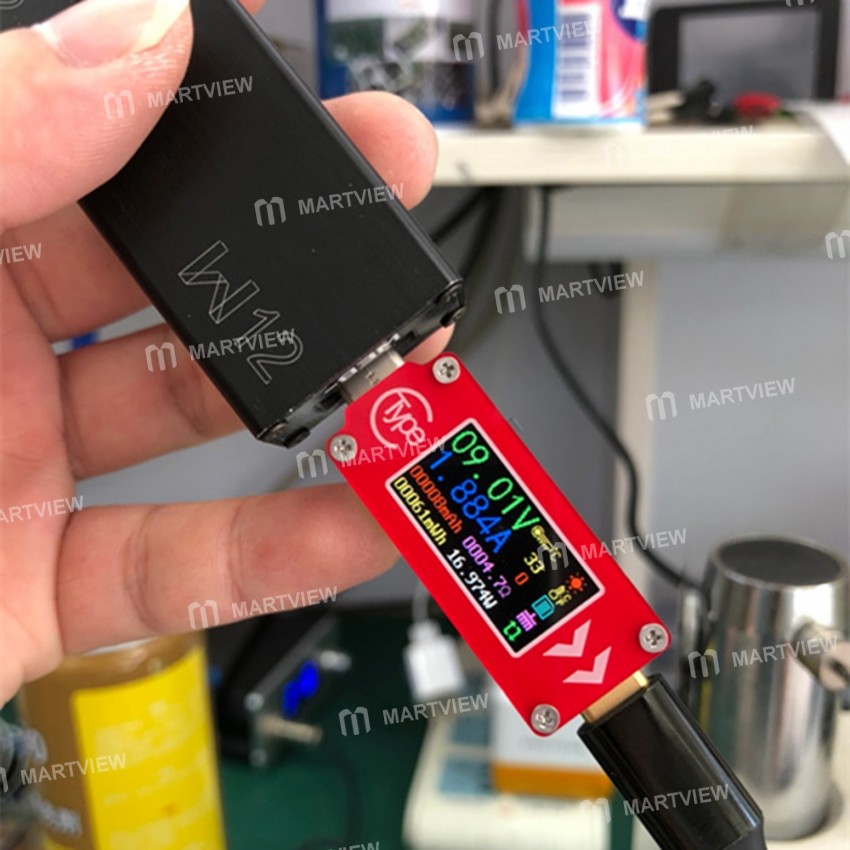

1. If you use TC64 meter to connect the phone, you must have a PD charger or have many converter cables.

1. Type-C port is full function port, support Type-C fast charge and most all type-c device, but not Type-c identity resistance(no type-c trigger)

1. Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.

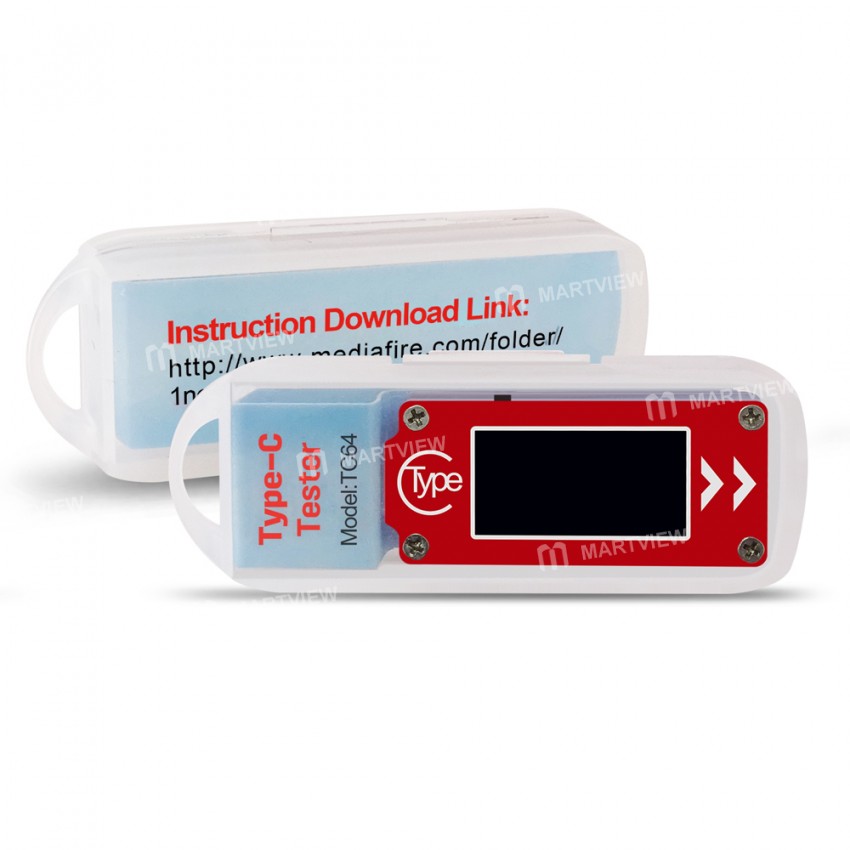

Package includes:
1 X Type-C Voltage Tester
