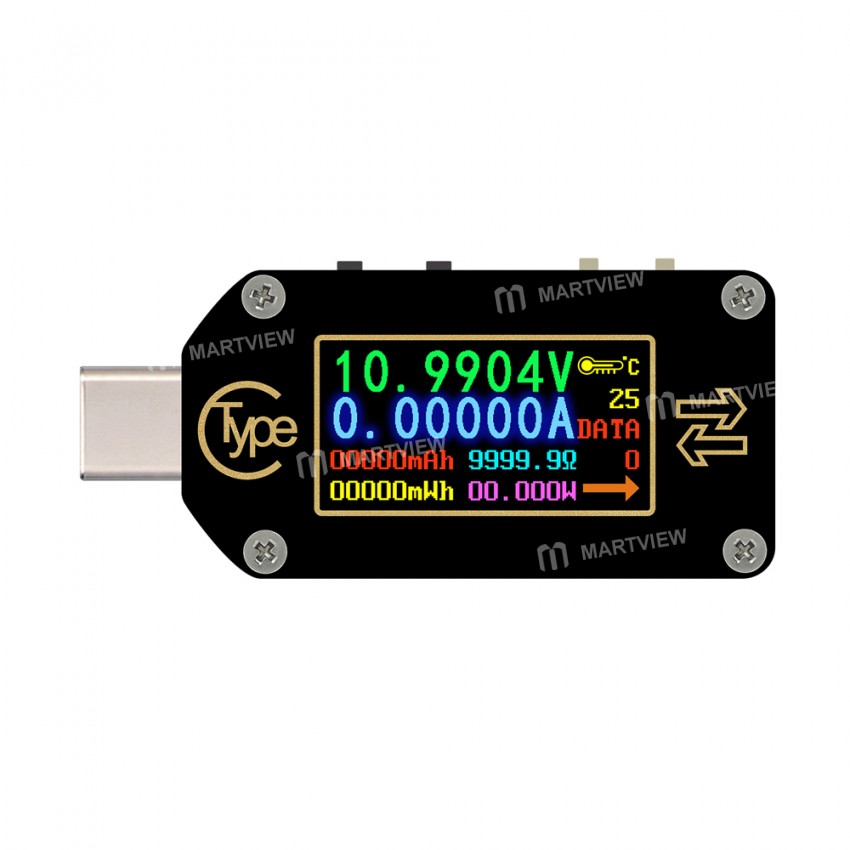

TC66 / TC66C Type-C PD Trigger Voltmeter Current Meter Tester Multimeter

No review yet

How to order?

Ready stock

NaN

As low as NaN

Worldwide shipping

Seller: Martview Shenzhen

ID: MV-AM618B

Weight: 0.15 kg

Qty	Price	Discount
1	NaN
3	NaN	-3.1%
5	NaN	-4.7%
10	NaN Wholesale Price	-7.0%

Please select Model

TC66 USBTC66 USB + PDTC66C USB + BluetoothTC66C USB / Bluetooth + PD

Product details

Technical Parameters:

Model:

TC66/TC66-C

Display screen：

0.96 Inch color IPS display

Voltage measurement range:

0.005V-30.0000V

Voltage measurement resolution:

0.0001V(0.1mV)

Current measurement range:

0-5.00000A

Current measurement resolution:

0.00001A(0.01mA)

Supply voltage:

3.5-24V

Screen Resolution:

160*80

Capacity accumulation range:

0-99999mAh

Voltage measurement accuracy:

±(0.5‰+20digits at 23℃)

Energy accumulation range:

0-99999mWh 999.99Wh

Current measurement accuracy:

±(1‰+30 digits, at 23℃)

Load impedance range:

1Ω-9999.9Ω

Power measurement range:

0-150W

Temperature measurement range:

0℃~80℃/32℉~176℉

Refresh rate:

2Hz

Working temperature range:

0~45℃/32℉~113℉

Auto screen off time:

0-9mins

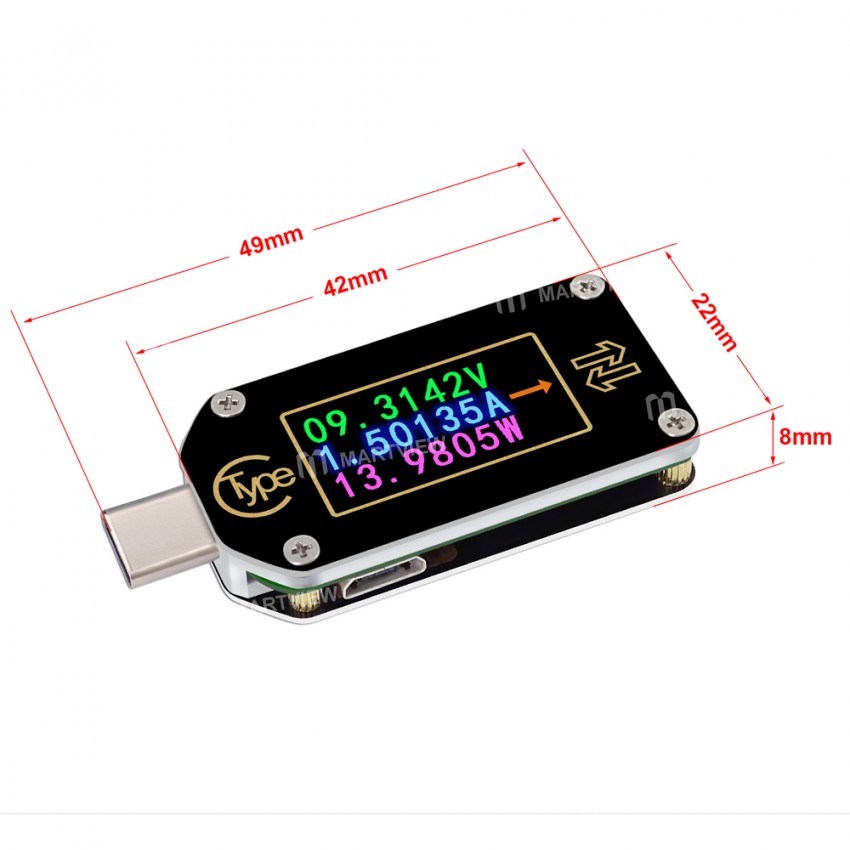

Dimensions：

49mmx22mmx8mm

Product weight:

about 8g (about package 22g)

Quick charge recognition mode：

QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG

Note :

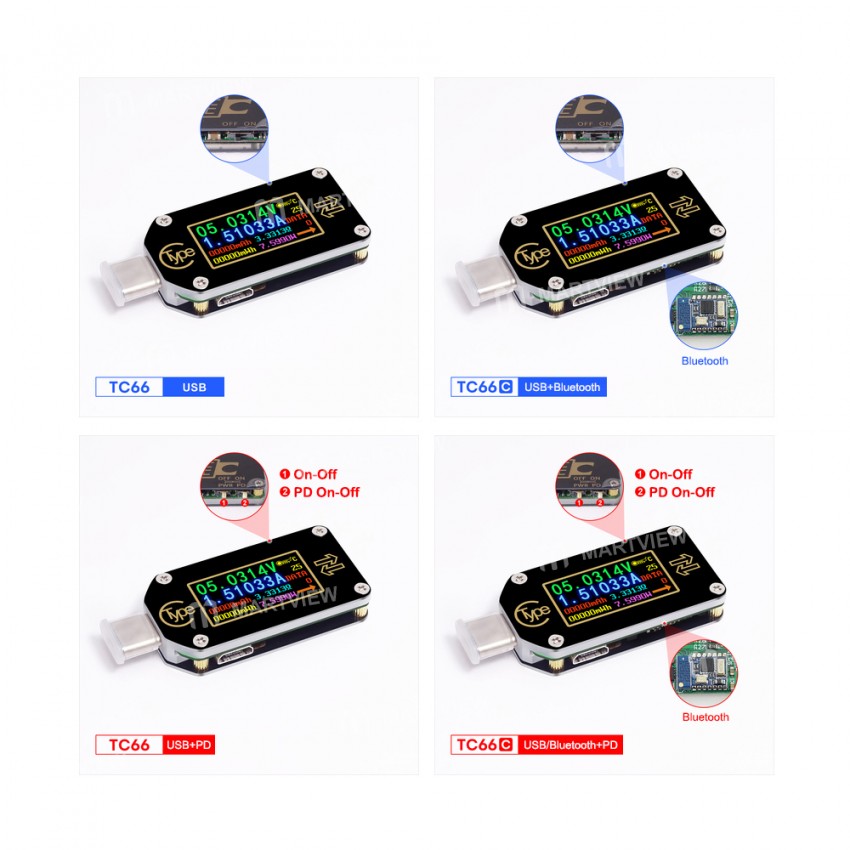

TC66 and TC66C difference: TC66 don't have Bluetooth board, don't support APP. TC66C have.
Because the firmware is constantly updated, Please refer to the products actually received.
When using TC66 to detect the charger, it is necessary to turn on the CC drop down. When using TC66 to detect the charging process of mobile phone, it is necessary to turn off the CC drop down.

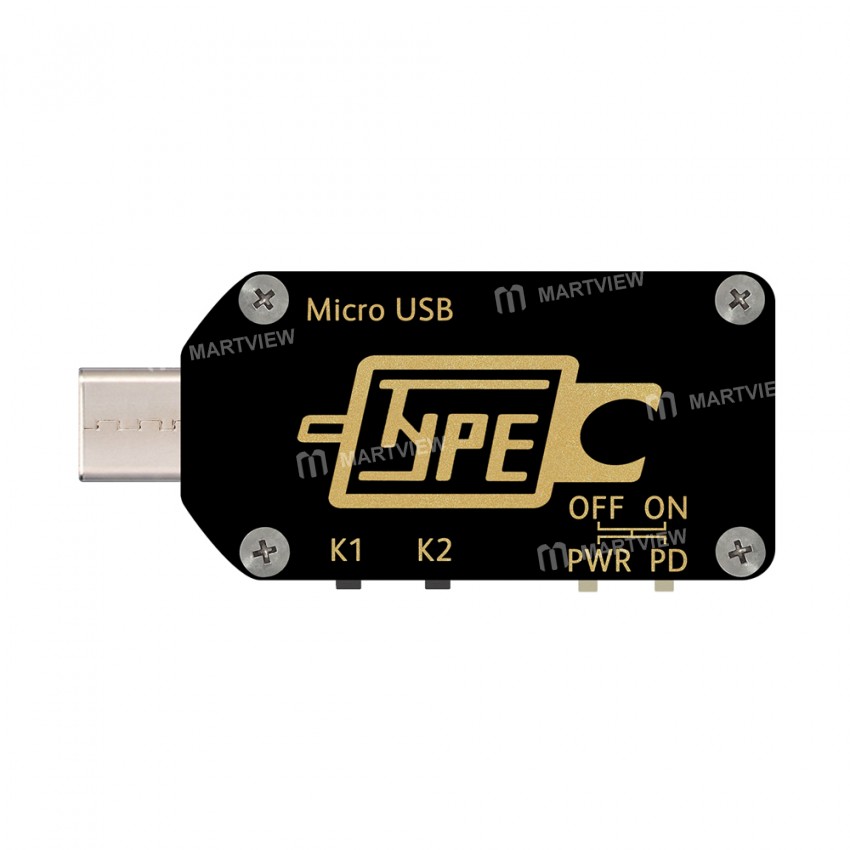

The switch ON the product is the power supply switch for the system. When in use, set it to ON. If the voltage is less than 3.5v, use Micro to supply power independently and set the switch to OFF.
When TC66 USES the double-headed Type-C line for the decoy triggering operation, only one side can be used. If it is not bright, please flip the interface.

Product Comparison:

	TC64	TC66(C)
USB port	Type-C port	Type-C port
Expansion port	None	Micro-USB
Voltage measurement range	3.70-30.00V	0.005V-30.0000V
Voltage measurement resolution	0.01V	0.0001V(0.1mV)
Current measurement range	0-4.000A	0-5.00000A
Current measurement resolution	0.001A	0.00001A（0.01mA）
