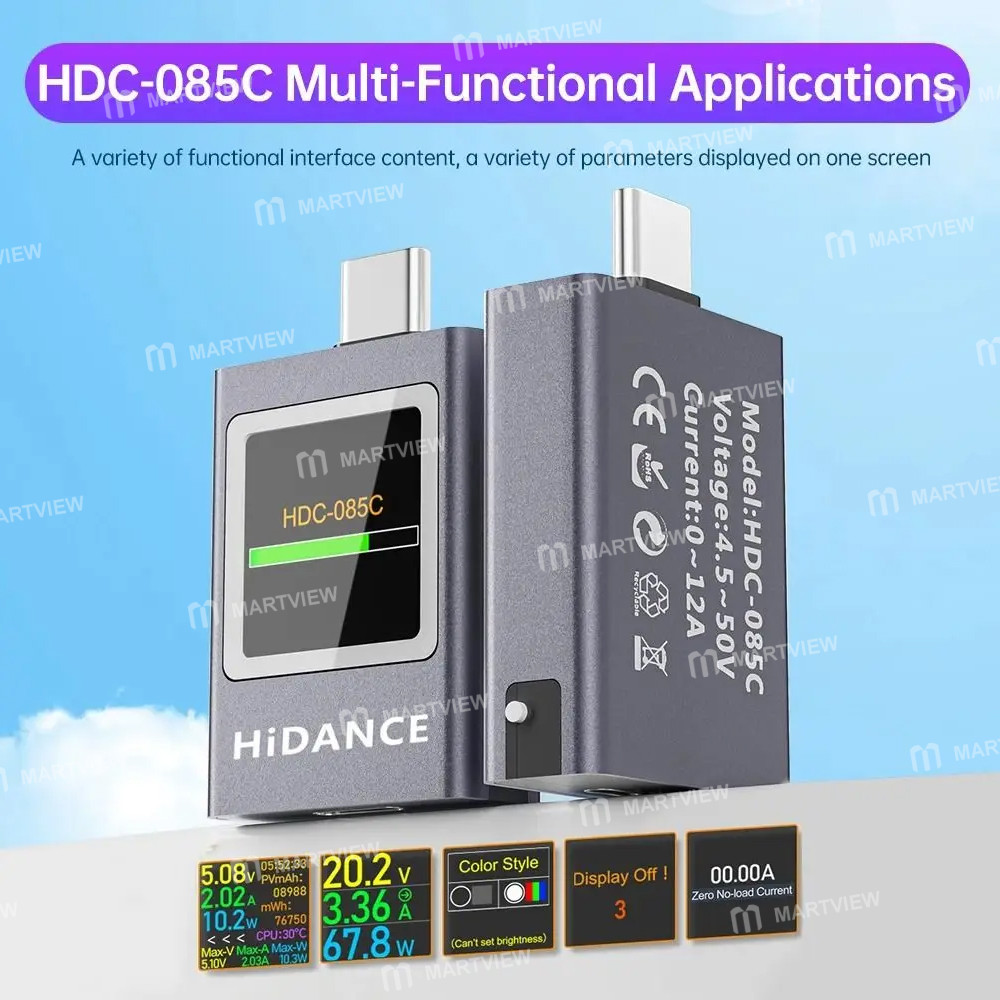

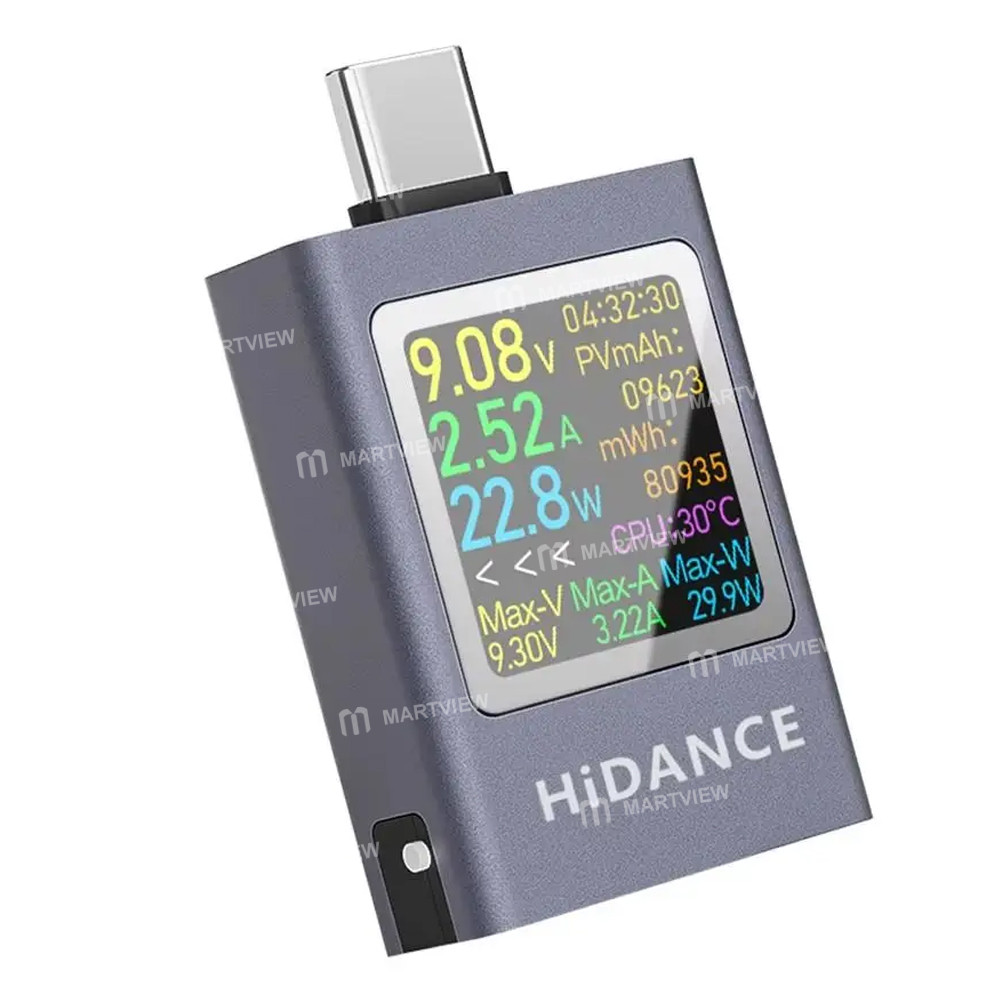

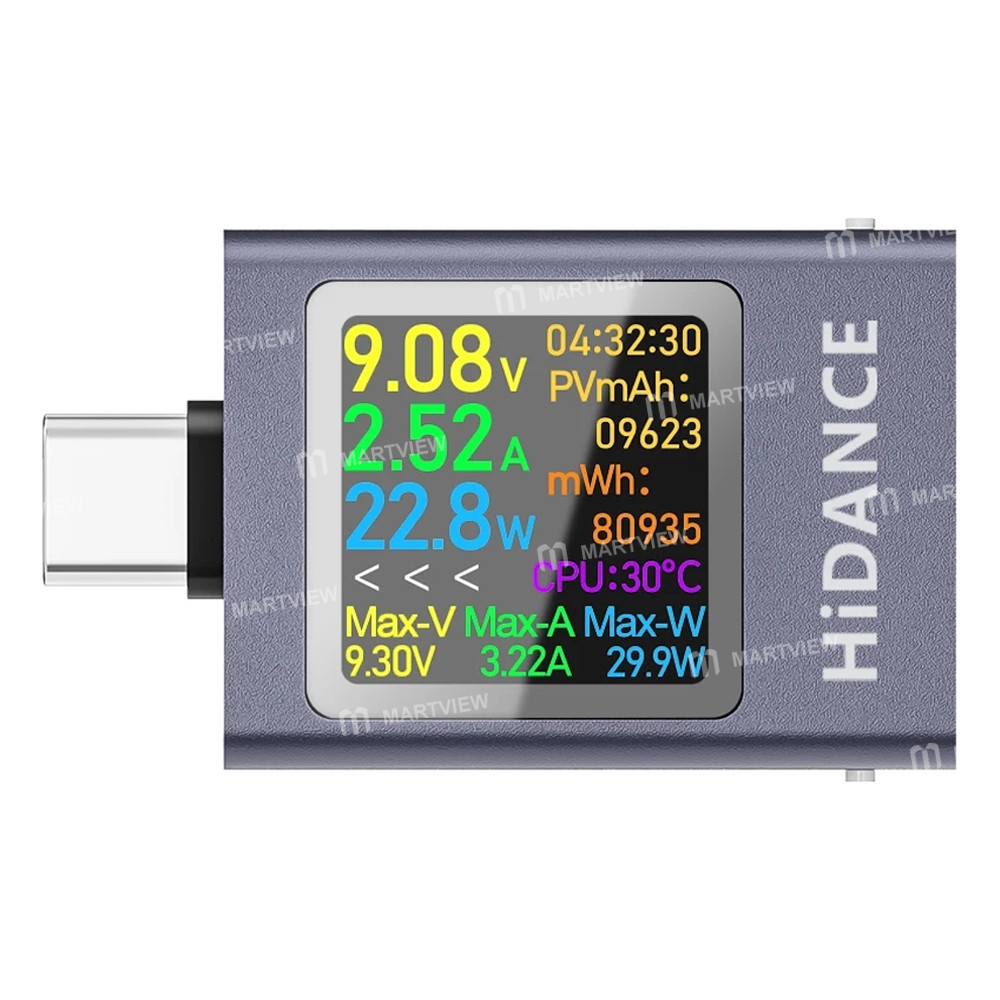

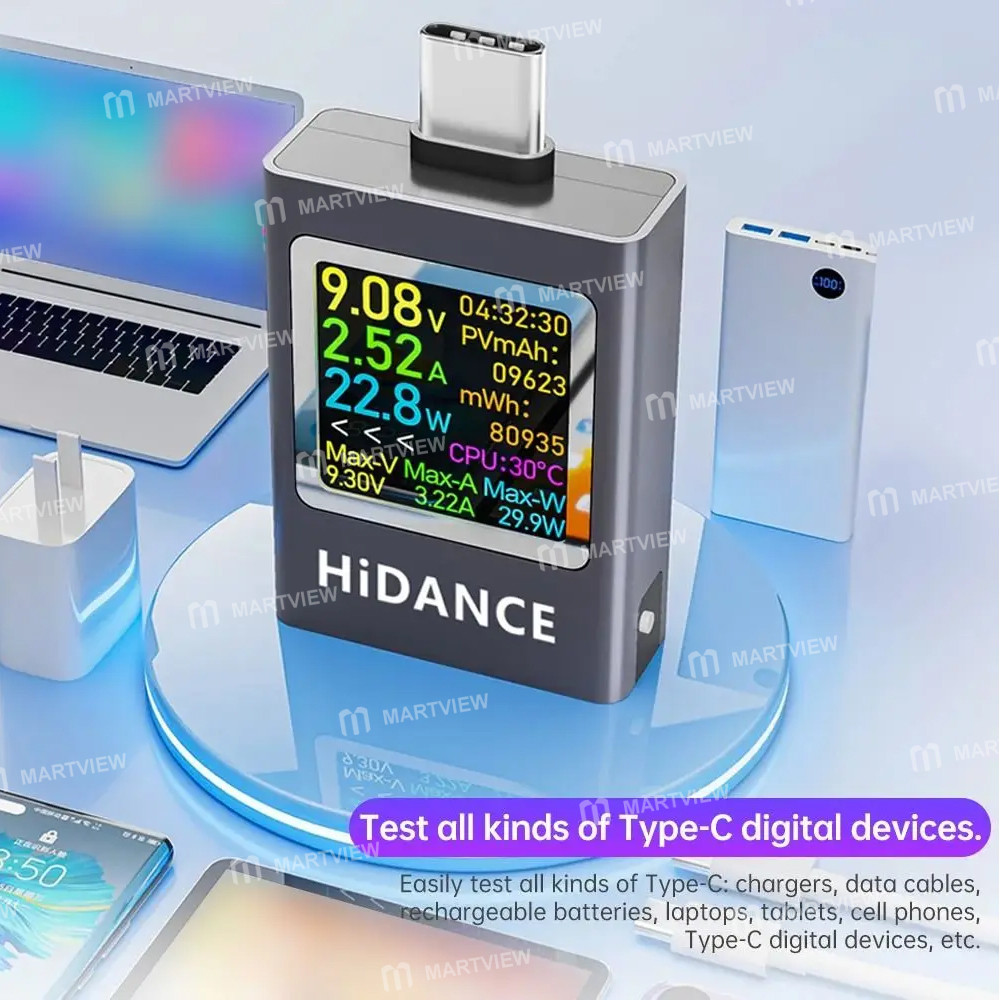

Type-C Digital Display DC Voltage / Current / Power Tester for Mobile Phone / Laptop Testing

Type-C Digital Display DC Voltage / Current / Power Tester for Mobile Phone / Laptop Testing

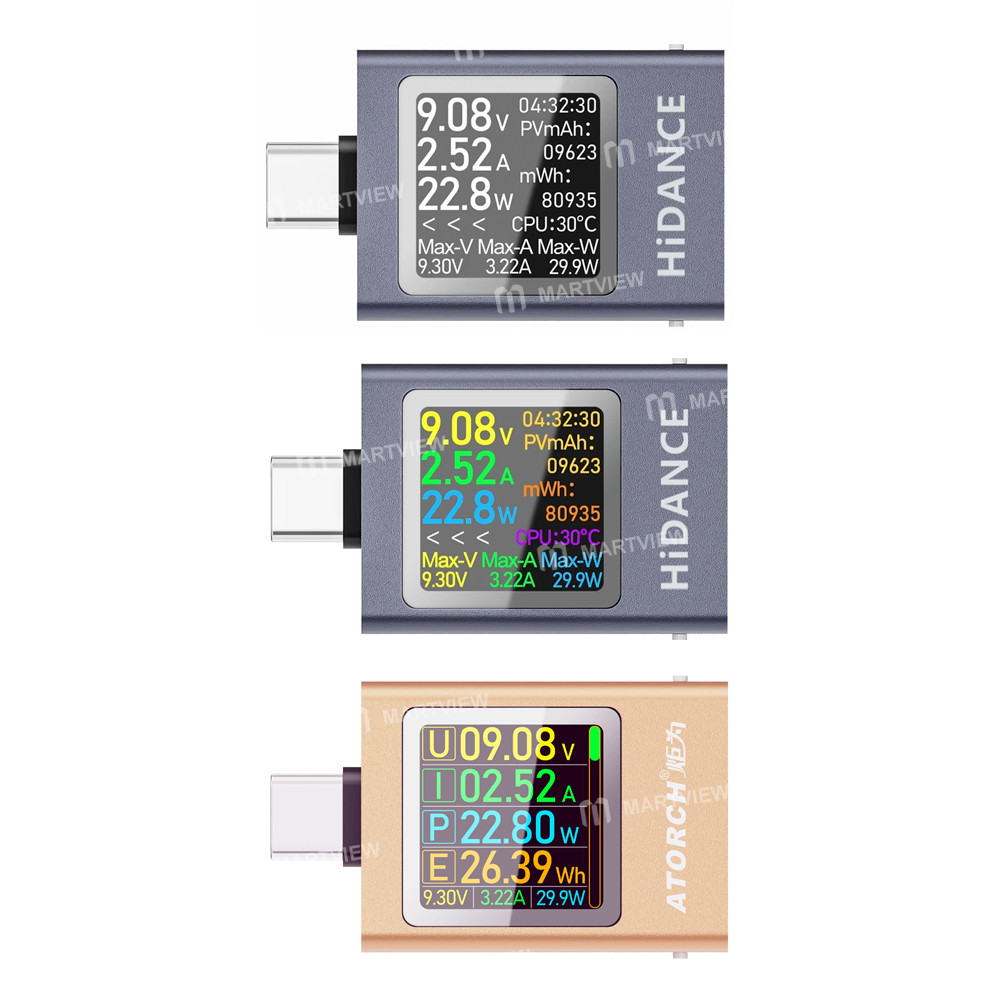

Option:

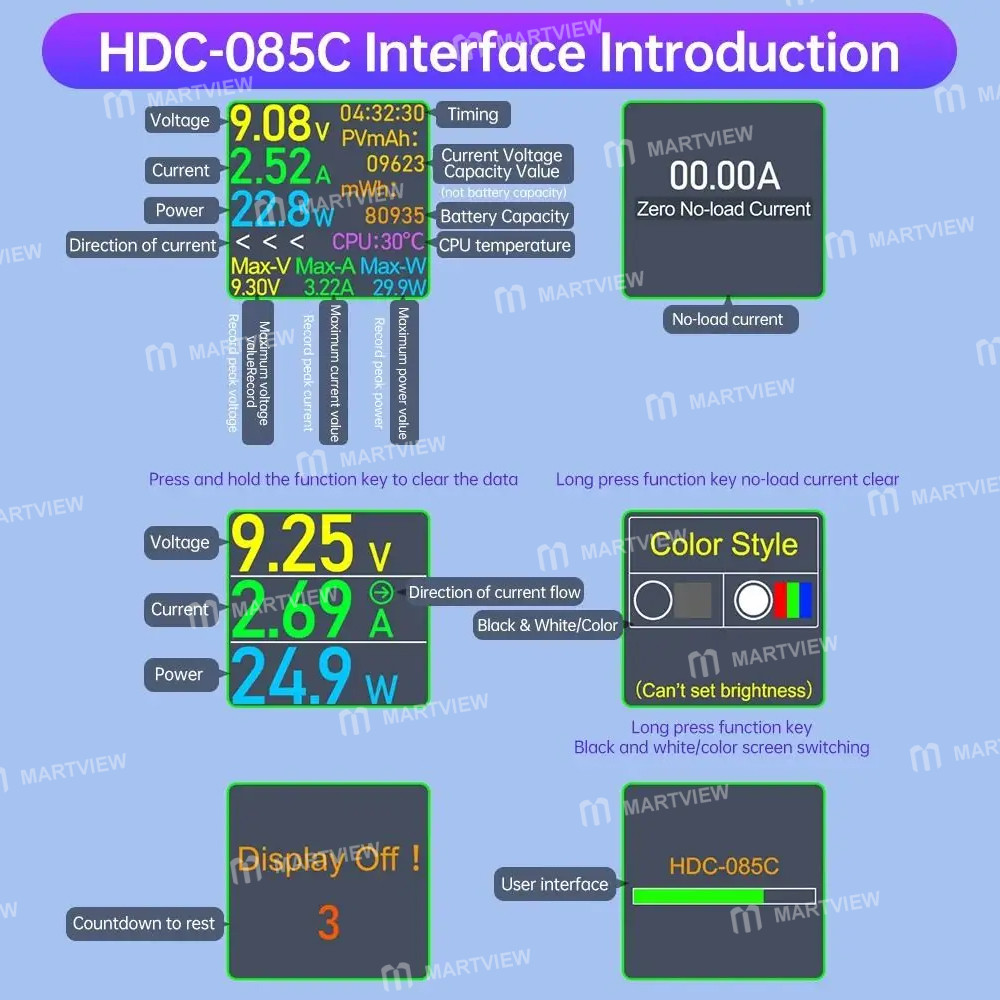

• Standard Model: Black-and-white screen alloy gray CC meter (Adjustable brightness + Four-way rotary screen + Peak recording, etc.)

• Upgraded Model: Color screen alloy gray CC meter (Adjustable brightness + Four-way rotary screen + Peak recording, etc.)

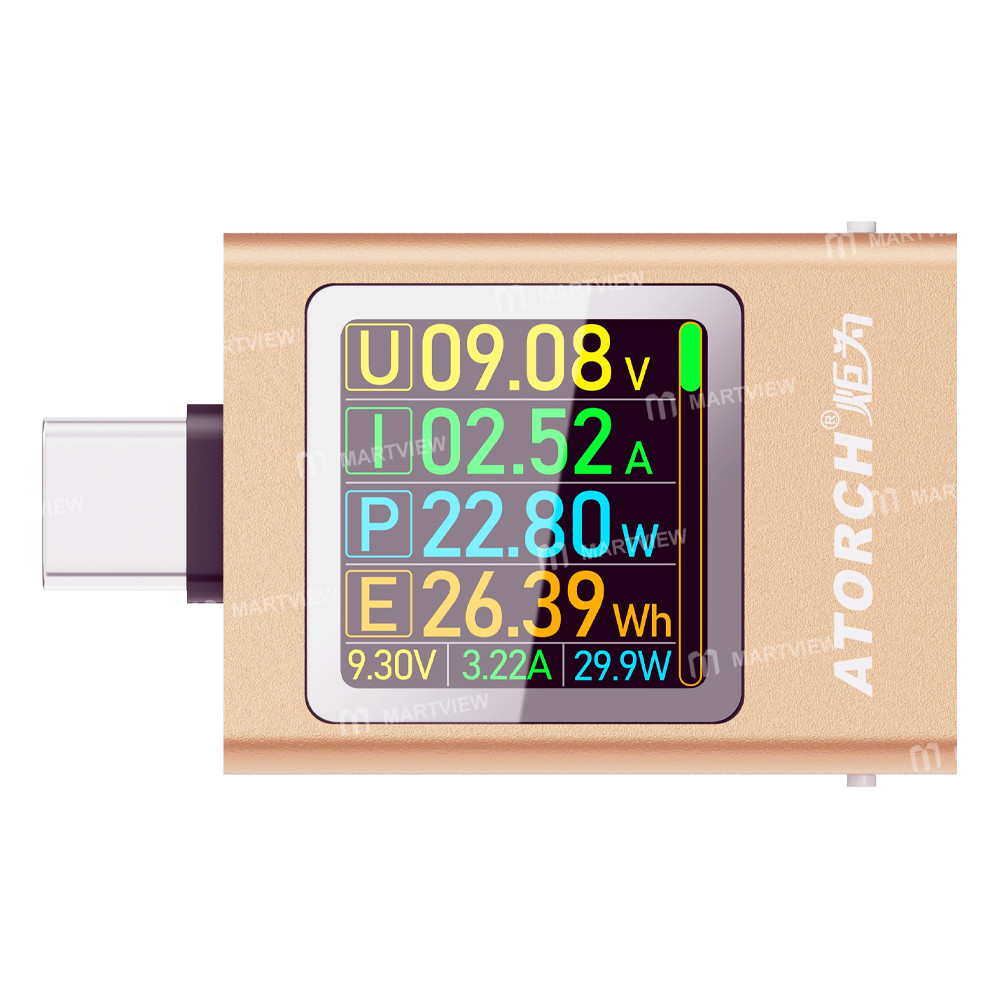

• Premium Model: Color screen champagne gold CC meter (Adjustable brightness + Four-way rotary screen + Peak recording + Gravity-activated rotary screen + Curve display + Battery capacity calculation, etc.)

Features:

• Protocol Compatibility: Supports multiple protocols, including PD2.0, PD3.0, PPS, QC2.0, and QC3.0, covering almost all USB-C charging protocols

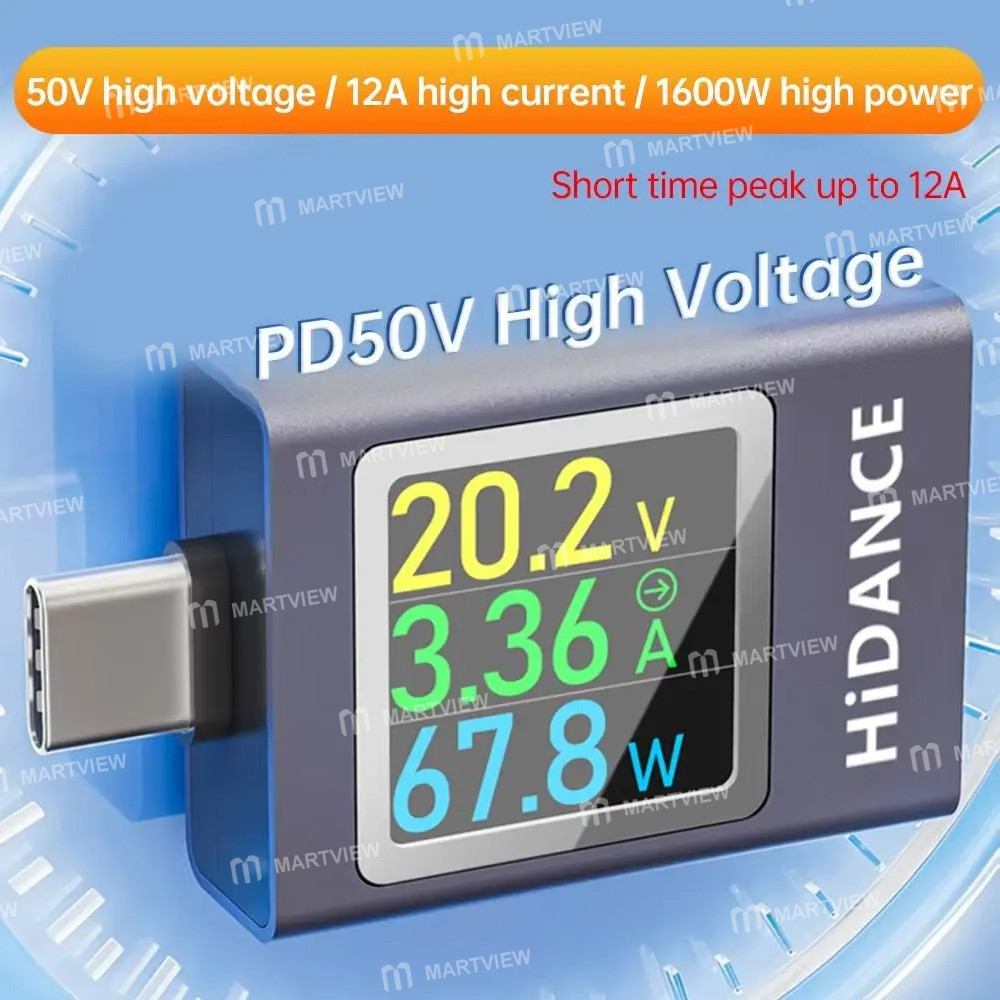

• High Peak Current: Can reach a peak current of 12A (50V 12A 600W) for short periods, suitable for high-power charging testing

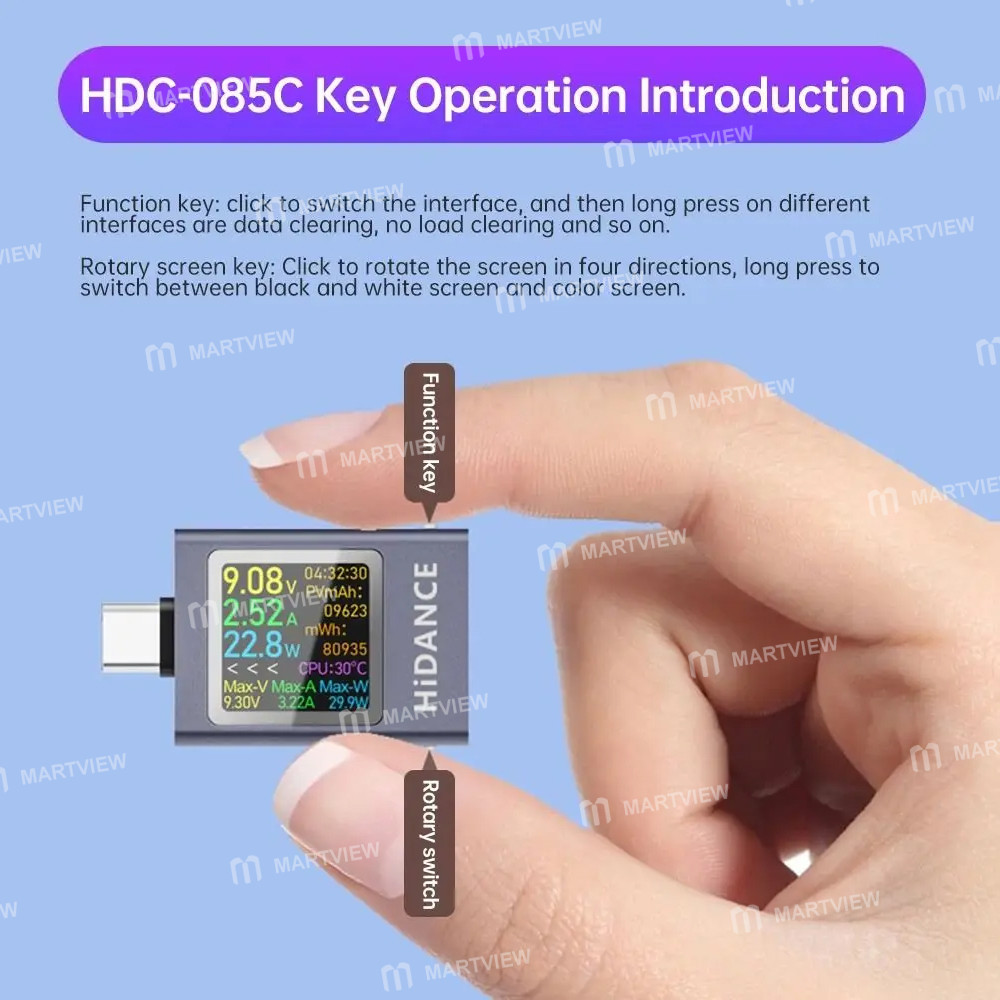

• Gravity-Sensing Rotating Screen: Rotate the screen for easy viewing of test data from different angles

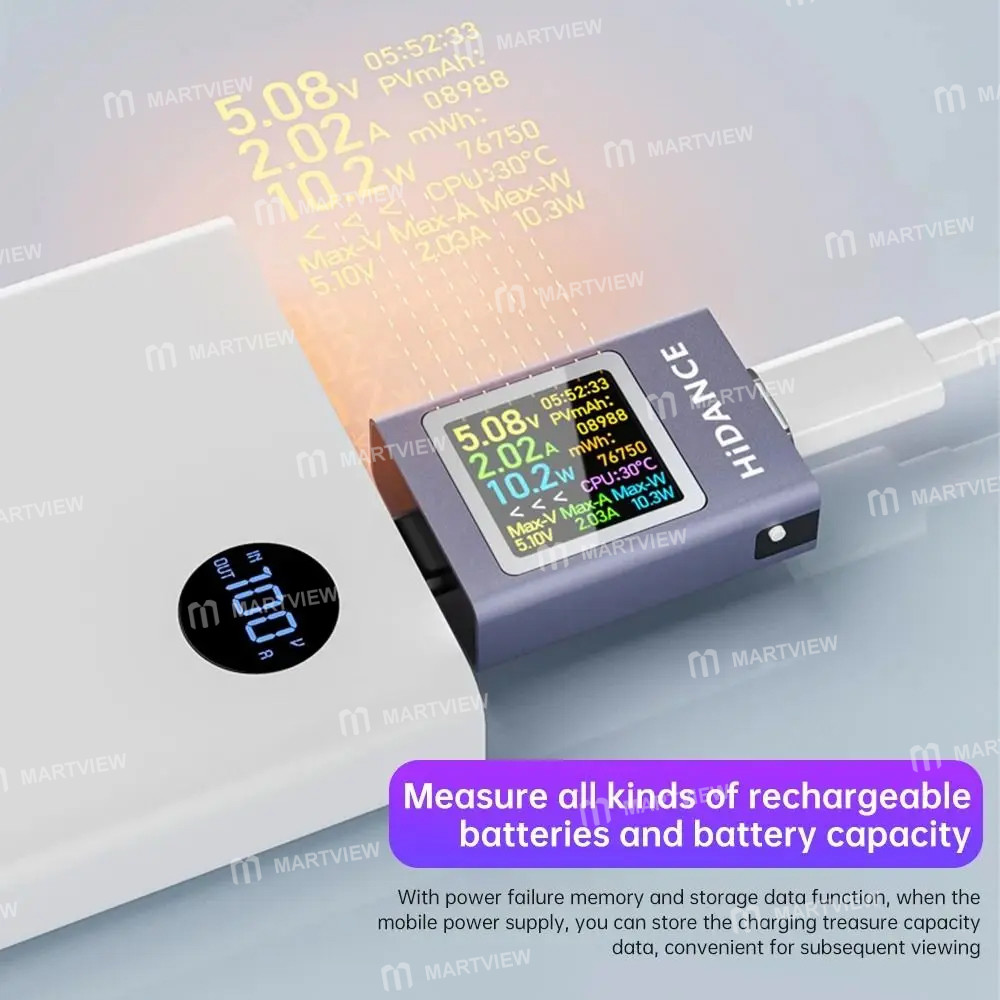

• Battery Capacity Calculation: Built-in dedicated logic algorithm calculates internal capacity based on battery voltage and conversion rate, avoiding the limitations of high-voltage testing

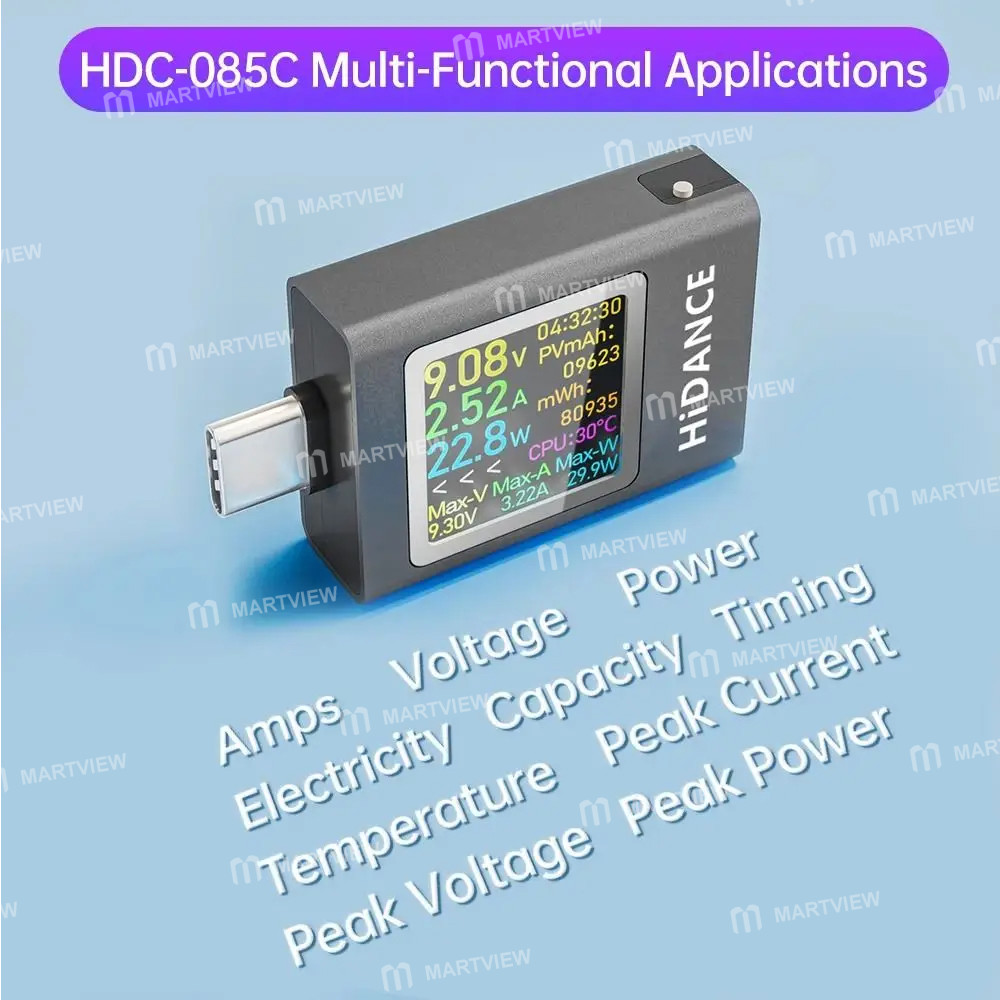

• Peak Recording Function: Records real-time peak values of voltage, current, and power during charging, facilitating later viewing of maximum values

• High-Efficiency Power Supply: Employs a built-in DC-DC switching power supply chip, offering high efficiency and low power consumption

Specifications:

• Product Name: Type-C Tester

• Operating Voltage: DC 4.5~50V

• Operating Current: 0~6A (Short-time peak 12A)

• Power Display: 0~9999WH

• Power Consumption: <0.15W

• Capacity Display: 0~99999mAh

• Power Display: 0~600W

• Operating Temperature: 0~45℃/32~113℉

• Sampling Resistor: 0.001R

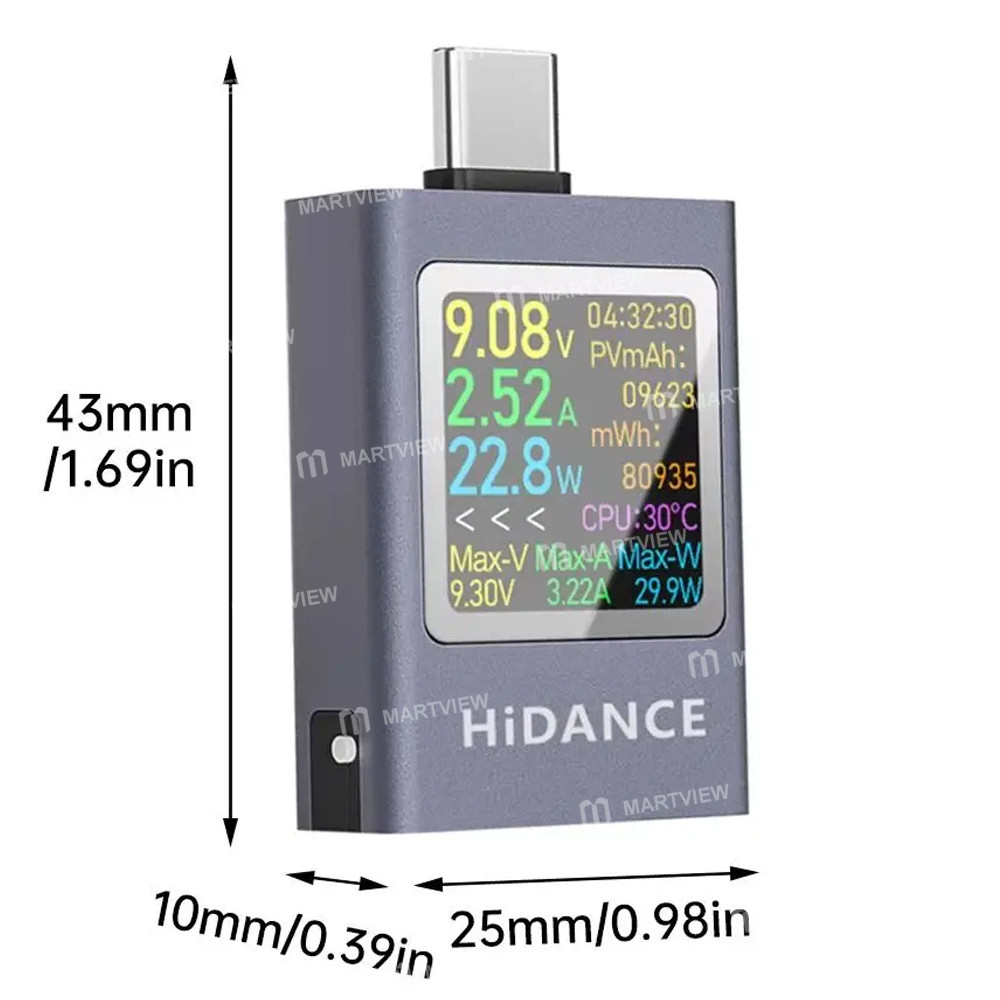

• Product Dimensions: 43x25x10mm

Package includes:

• 1 x Tester
