Product details

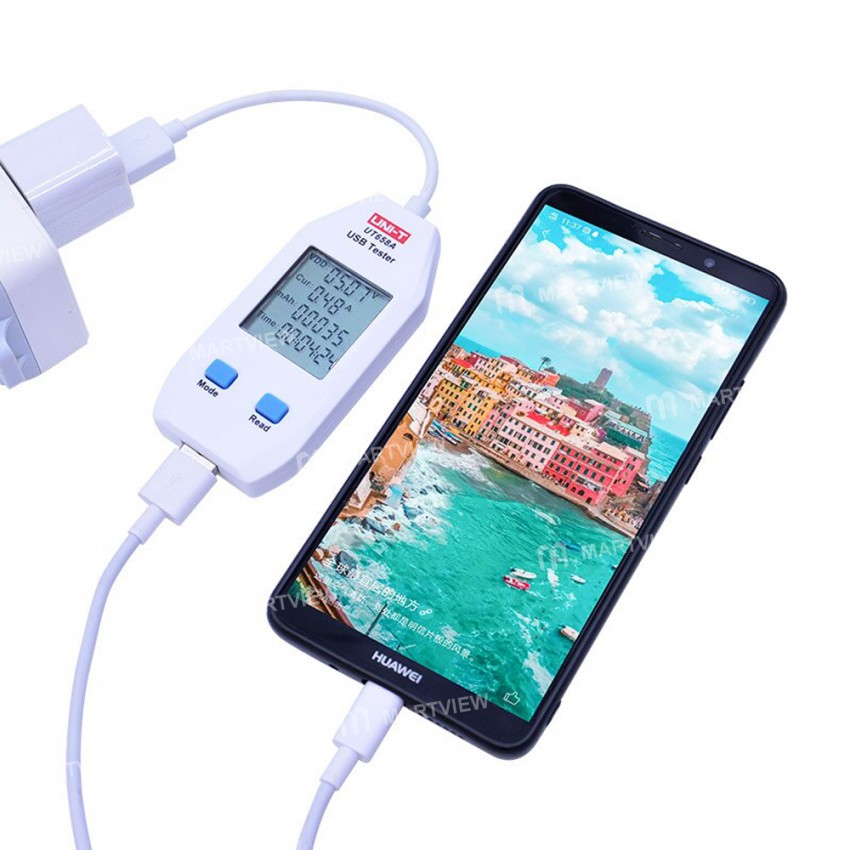

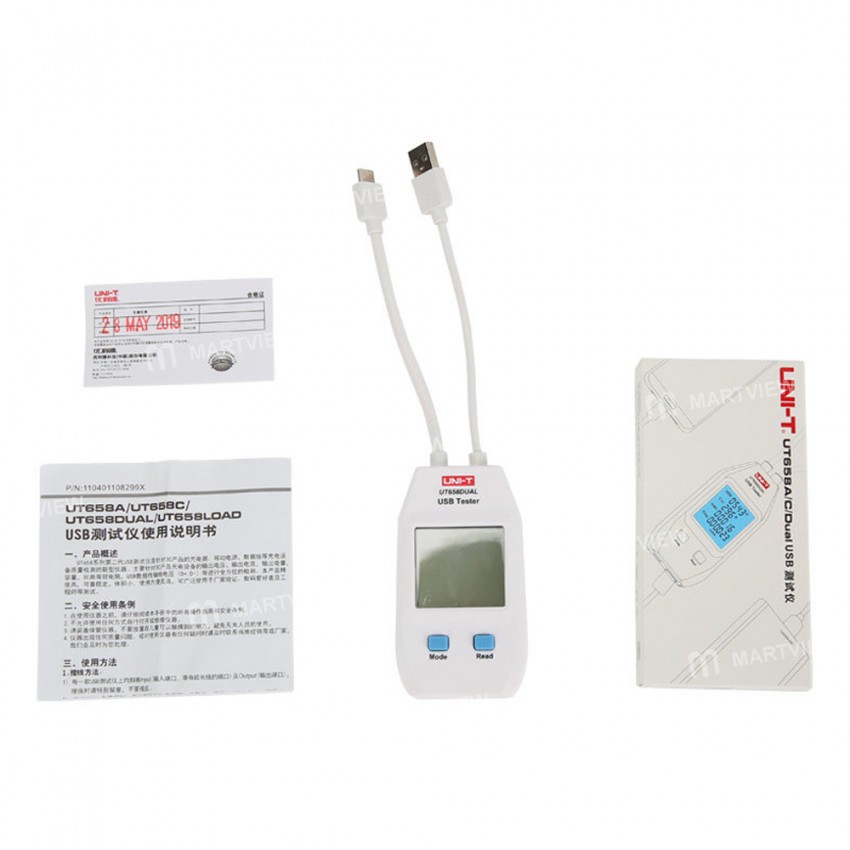

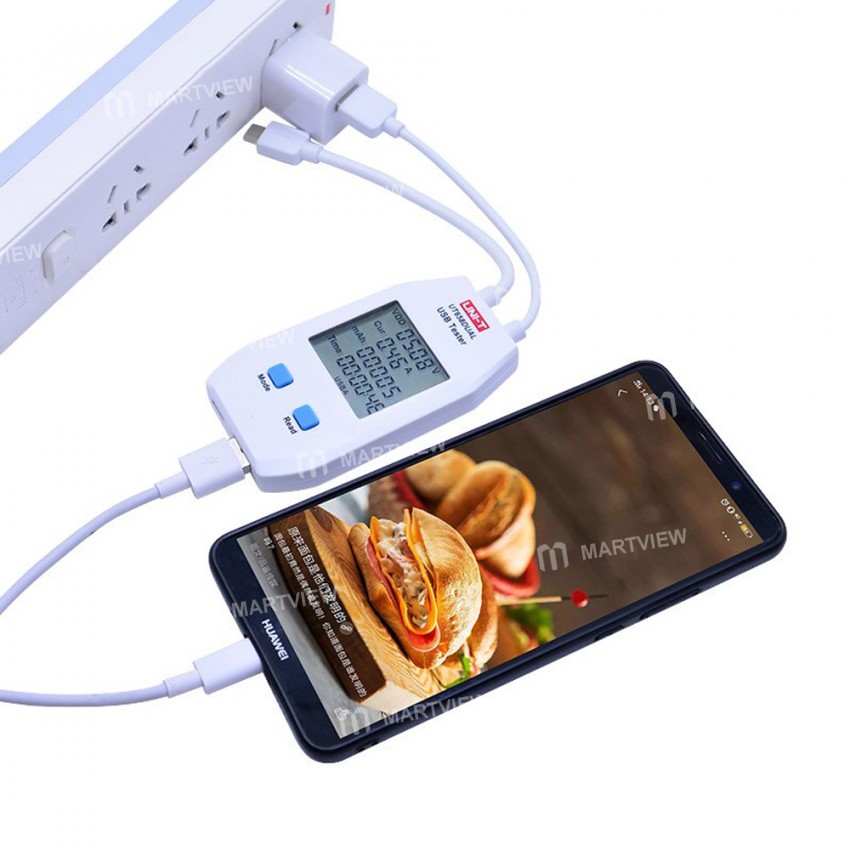

UNI-T UT658 Series USB Power Tester

Features:
Type-A interface
The same screen shows voltage, current, power, capacity, etc.
10 sets of data storage
Loop equivalent resistance measurement (1-480Ω)
CE certification
Support fast charge protocol (QC1.0/2.0/3.0Type-A)
With a maximum 3A working current electronic load (LOAD version)

Specification：

		UT658A	UT658C	UT658DUAL
Input &Output Ports	USB Type-A	√		√
	USB Type C		√	√
Voltage range	4~24VDC , resolution:0.01V	√	√	√
Current range	0.05~3ADC, resolution0.01A	√		√
	0.05~5ADC, resolution0.01A		√	√
Capacity	0~99999mAh , resolution:1mAh	√	√	√
Energy	0~1000Wh	√	√	√
Circuit equivalent resistance measurement	1~480Ω	√	√	√
USB data cable voltage (D+, D-)	0~3.3V	√	√	√
Data storage	10 sets	√	√	√
Maximum timing	99h, 59min, 59sec; resolution:1s	√	√	√
Supports fast charge	Supports USB 2.0 dala transmission and QC1.0 / 2.0 / 3.0 Fast charge protocol (Type A)	√		√
	Supports USB 2.0 dala transmission and QC1.0 / 2.0 / 3.0 / 4.0 Fast charge protocol (Type C)		√	√
Certification	CE Certification	√	√	√
