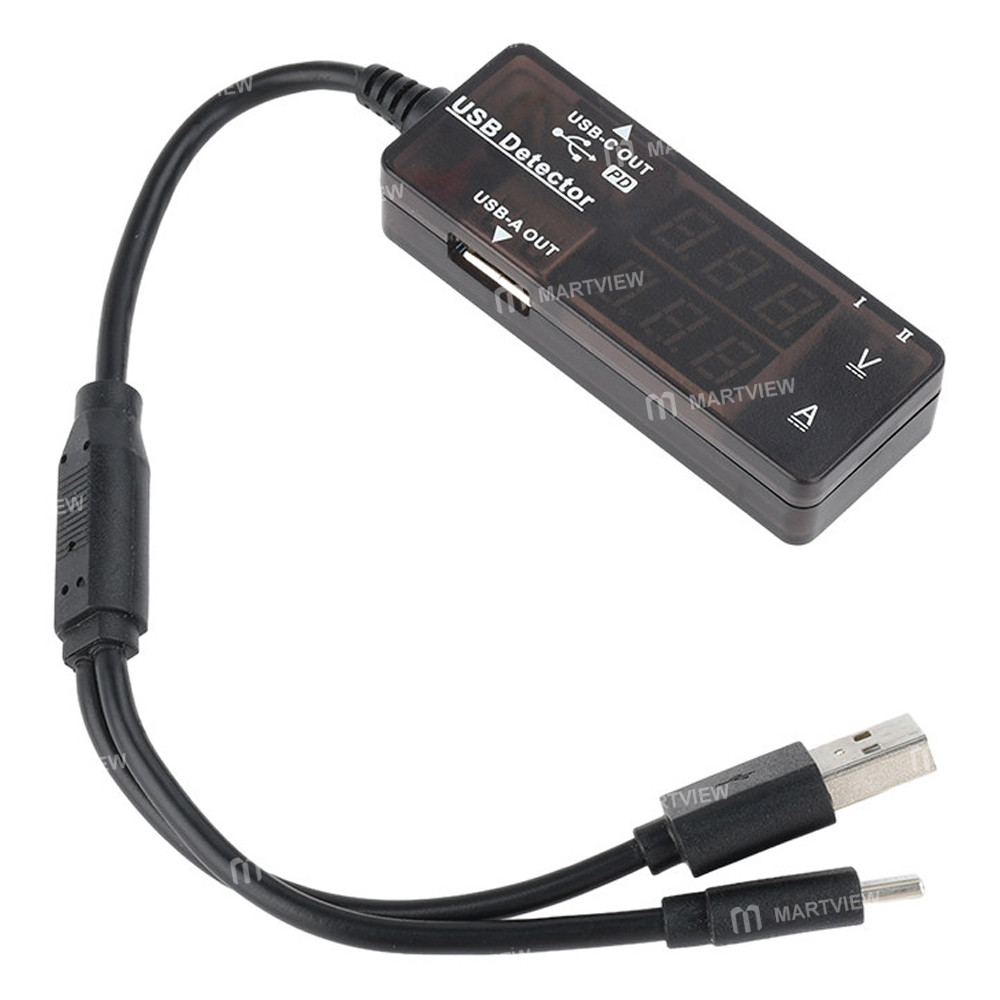

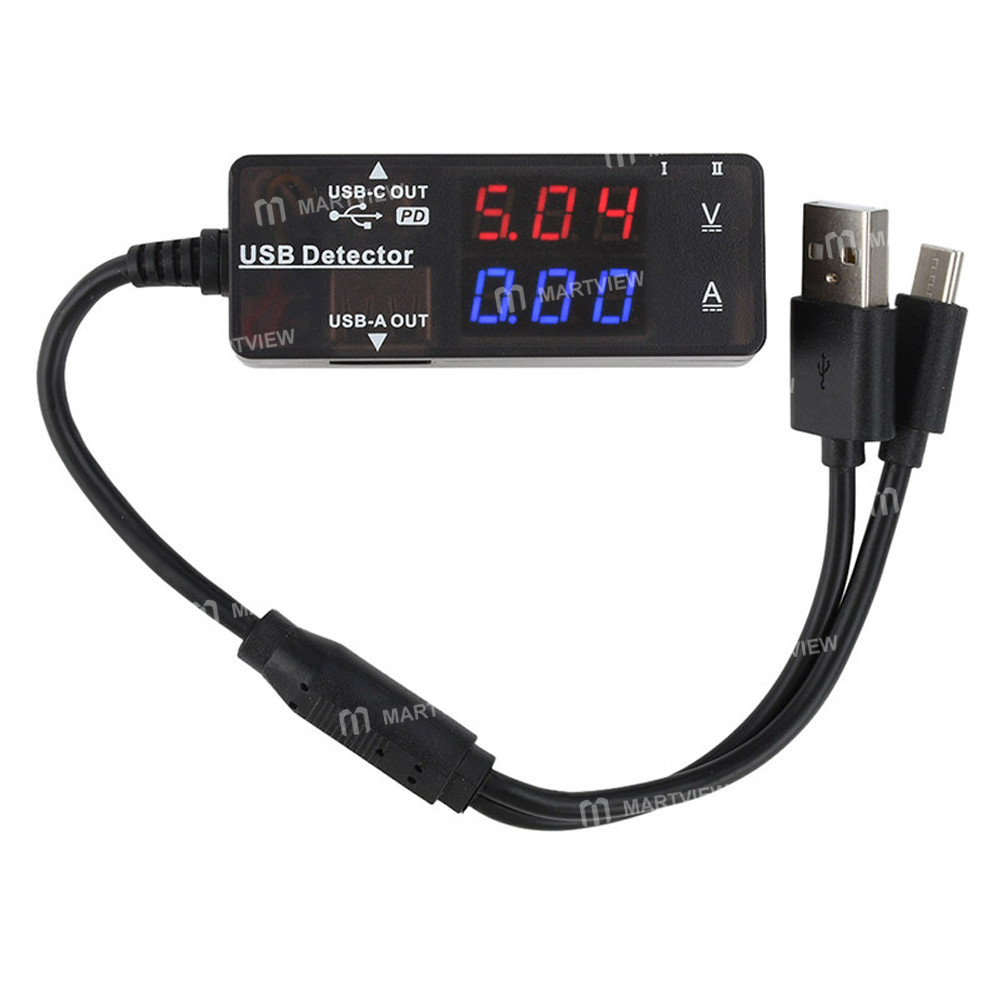

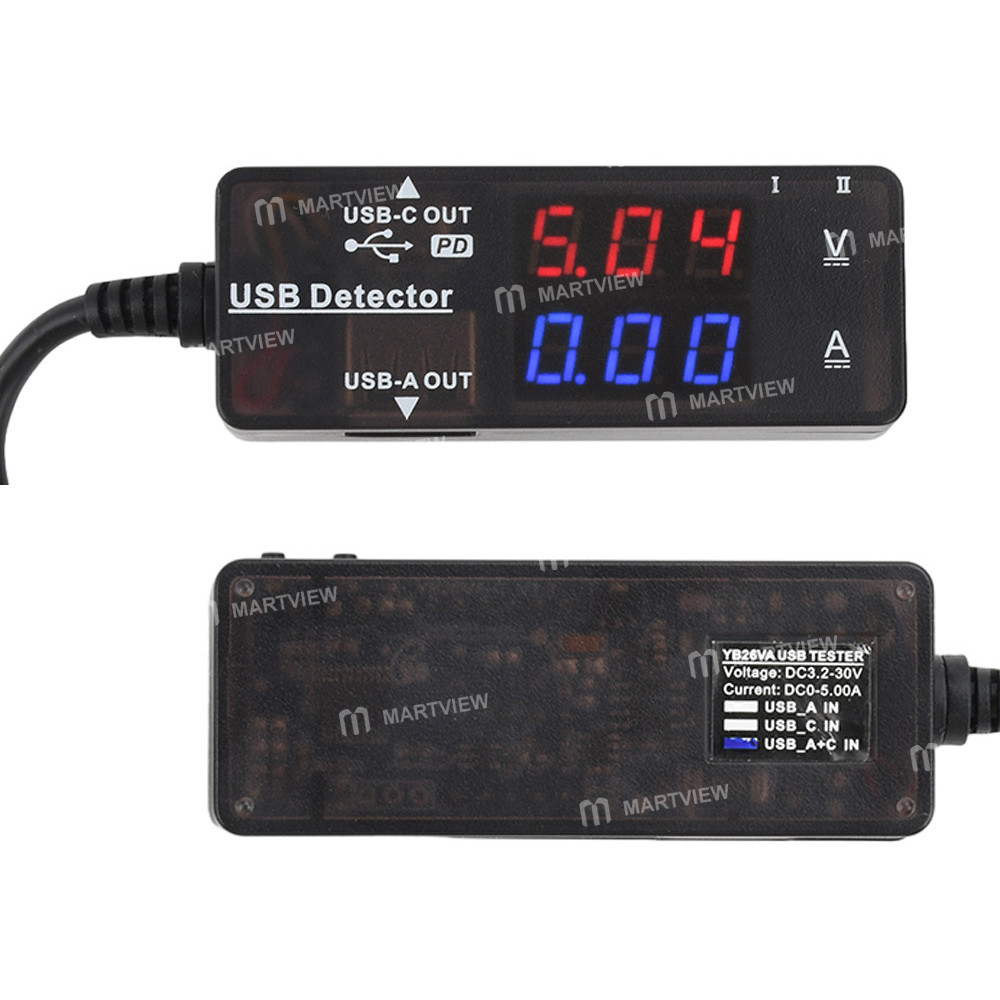

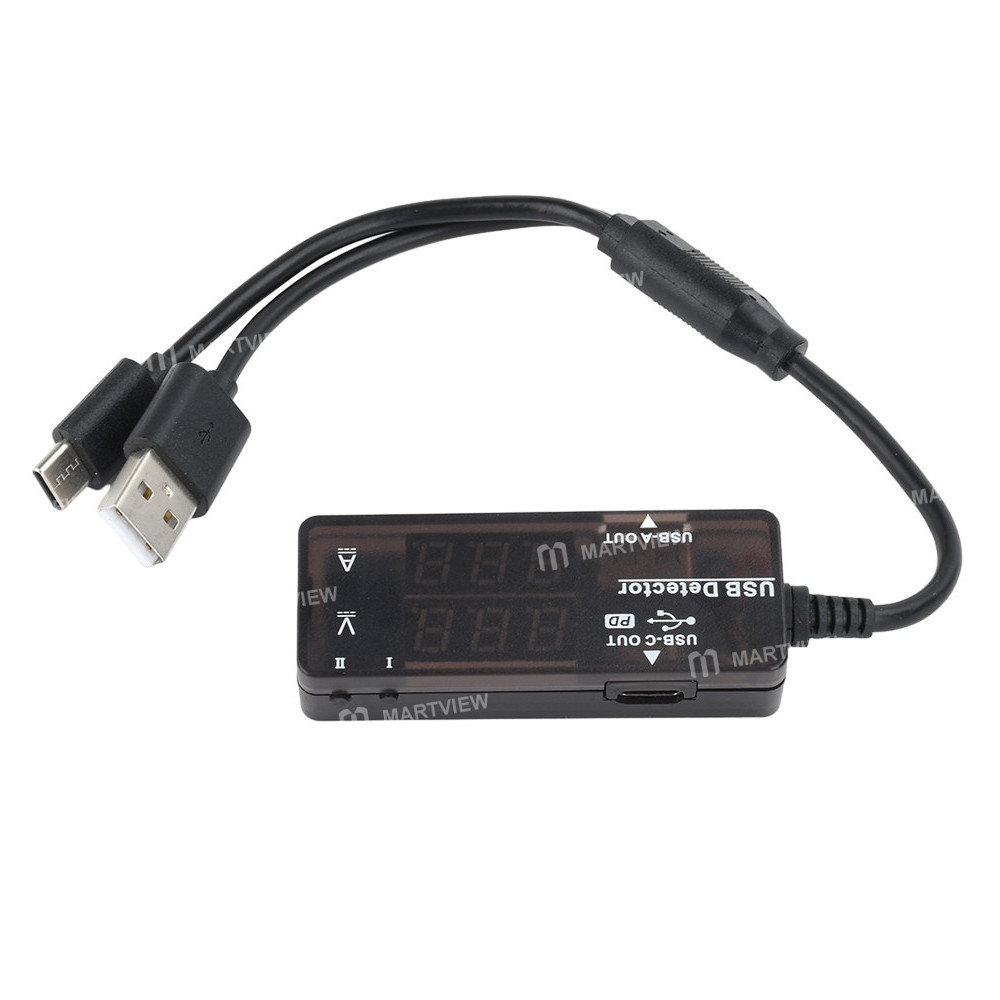

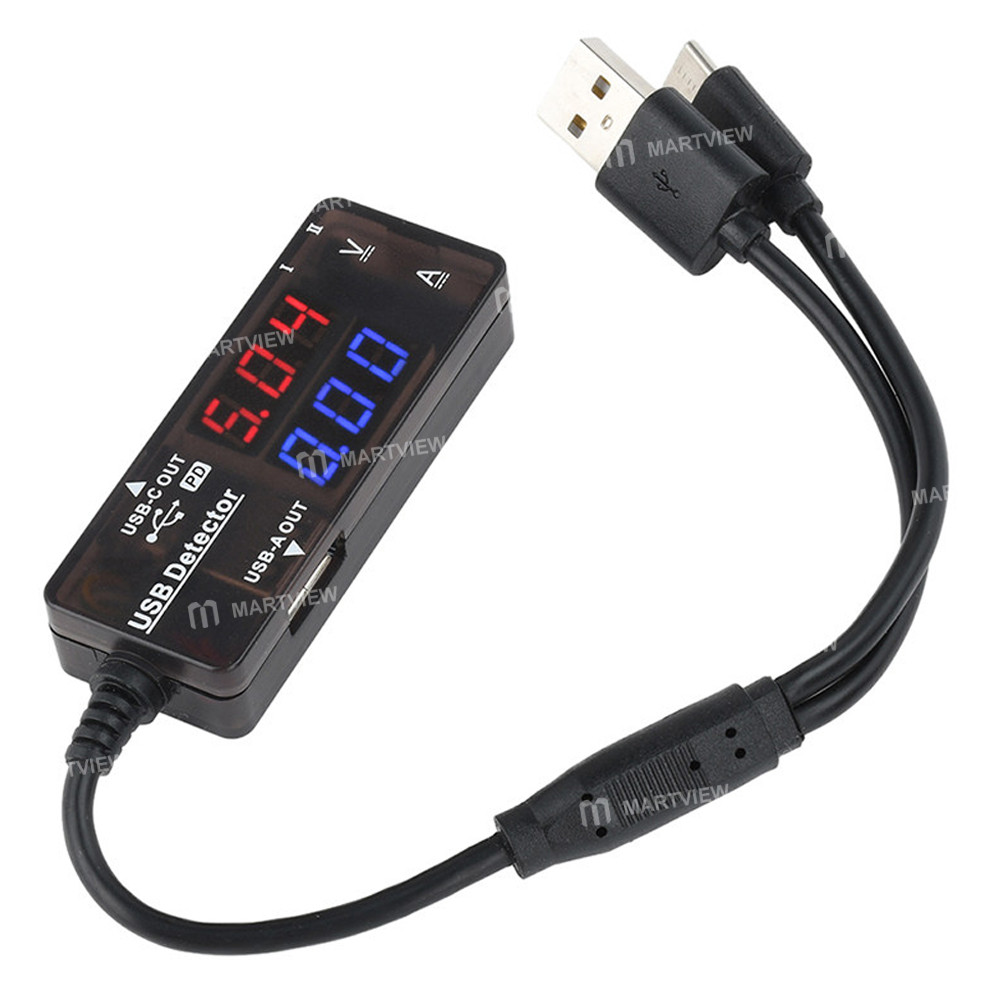

USB + Type-C Dual-Output Digital Voltage and Current Meter with Dual Displays

USB + Type-C Dual-Output Digital Voltage and Current Meter with Dual Displays

Features:

• Multiple Protections: Overvoltage protection, under voltage protection, overcurrent protection, and short circuit protection ensure device safety.

• Multi-functional Display: Offers 7 display modes, supports 2-key switching, and 3 fixed display modes.

• Precise Measurement: Measurement accuracy reaches 0.1% (±3 characters), with a measurement rate of 500ms/time.

• Intelligent Charging Mode Recognition: Built-in intelligent charging control IC automatically identifies the device and provides the appropriate charging current.

• USB cable length: The USB extension cable is 226mm (8.9 inches) for easy device connection.

Specifications:

• Product Name: USB Tester

• Display Method: 0.28" LED, Dual Color (Red and Blue) Available

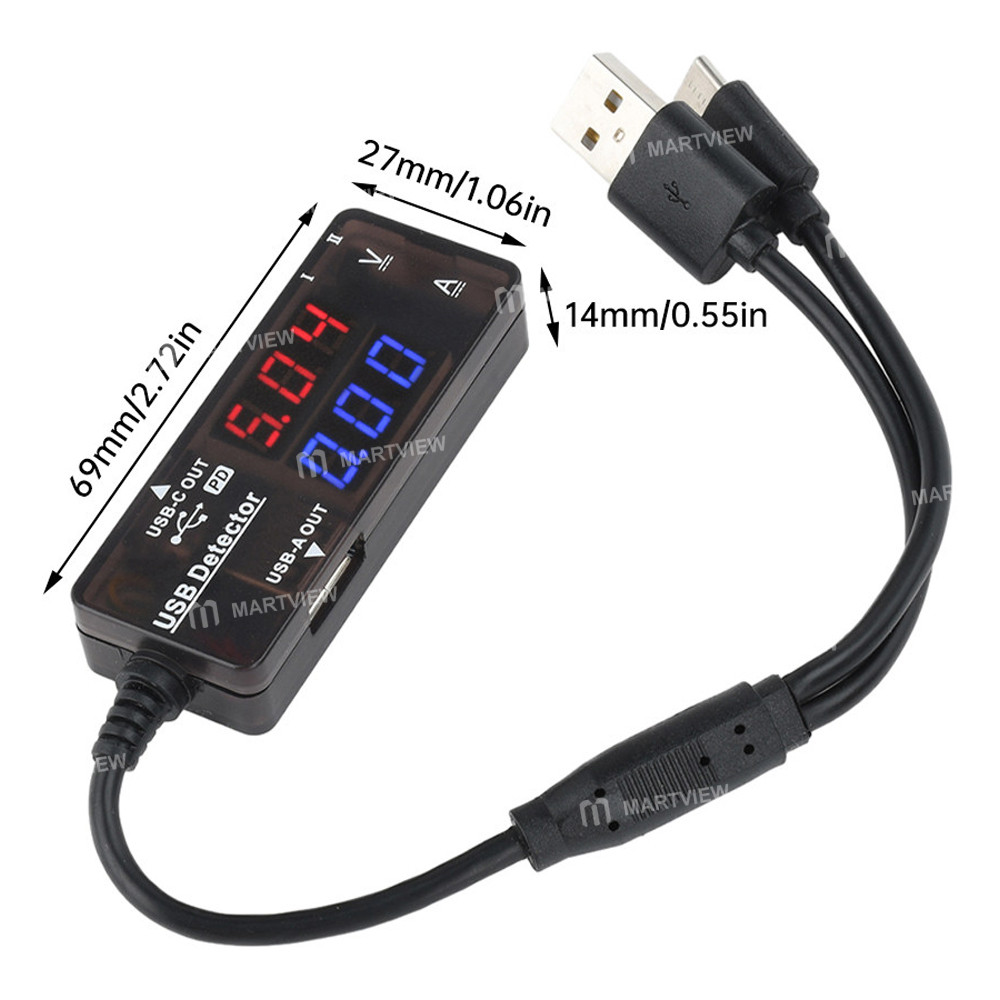

• Product Dimensions: 69*26*19mm

• USB Extension Cable: ≥120mm

• Measurement Accuracy: 0.1% (±3 digits)

• Measurement Rate: ≥500ms/time

• Operating Temperature: -10℃～+65℃

• Operating Pressure: 80～106kPa

• Operating Humidity: 10～80% (Non-condensing)

• Sunlight Exposure: No direct sunlight

• Input Voltage: Test Voltage: 3.20-30.0V (Automatic decimal point shift)

• Resolution below 10V: 0.01V

• Resolution above 10V: 0.1V

• Test Current: 0.00-5.00A (Up to 10A, cannot operate for extended periods)

• Automatic Identification: OUTPUT Ⅱ has a built-in intelligent charging control IC, which can automatically match a suitable and safe high-current charging for your mobile phone or tablet

Package includes:

• 1 x Meter
