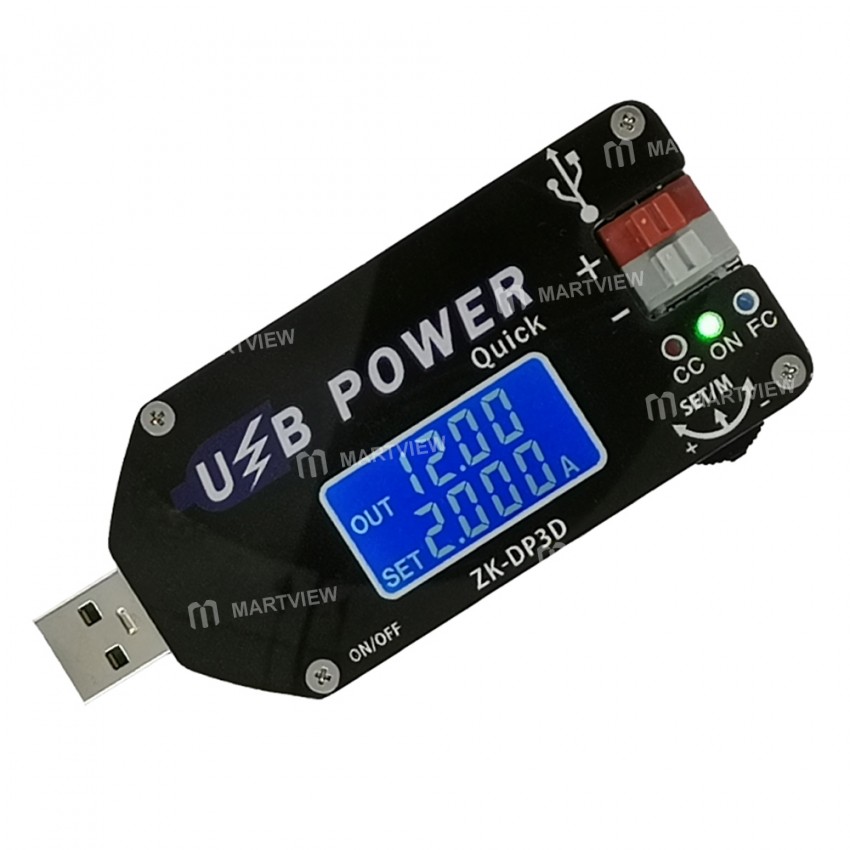

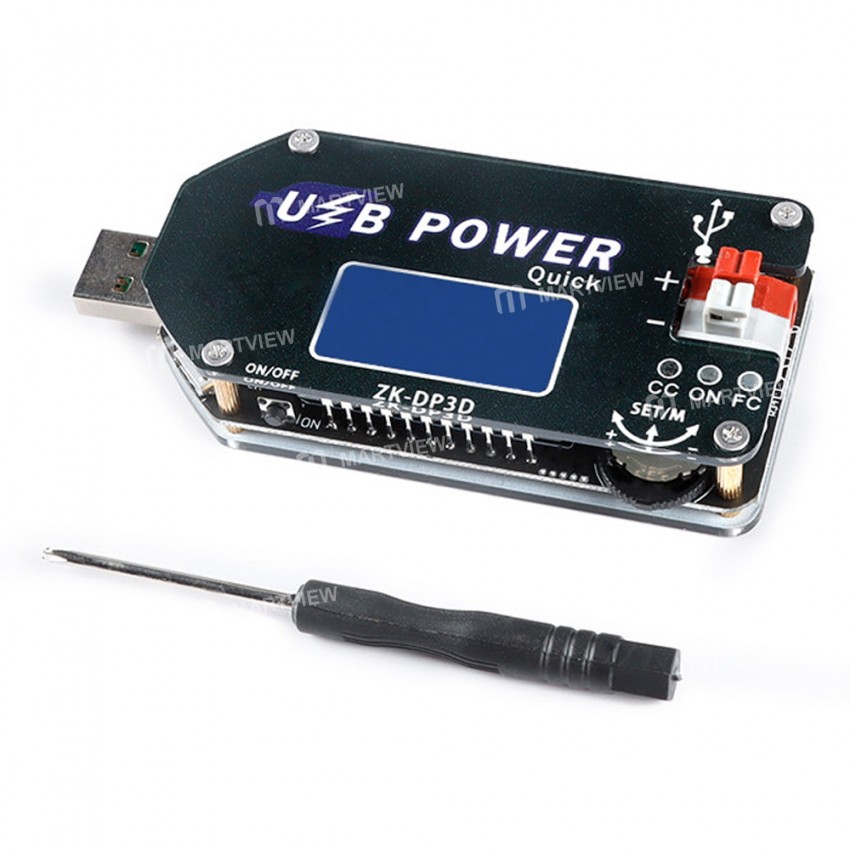

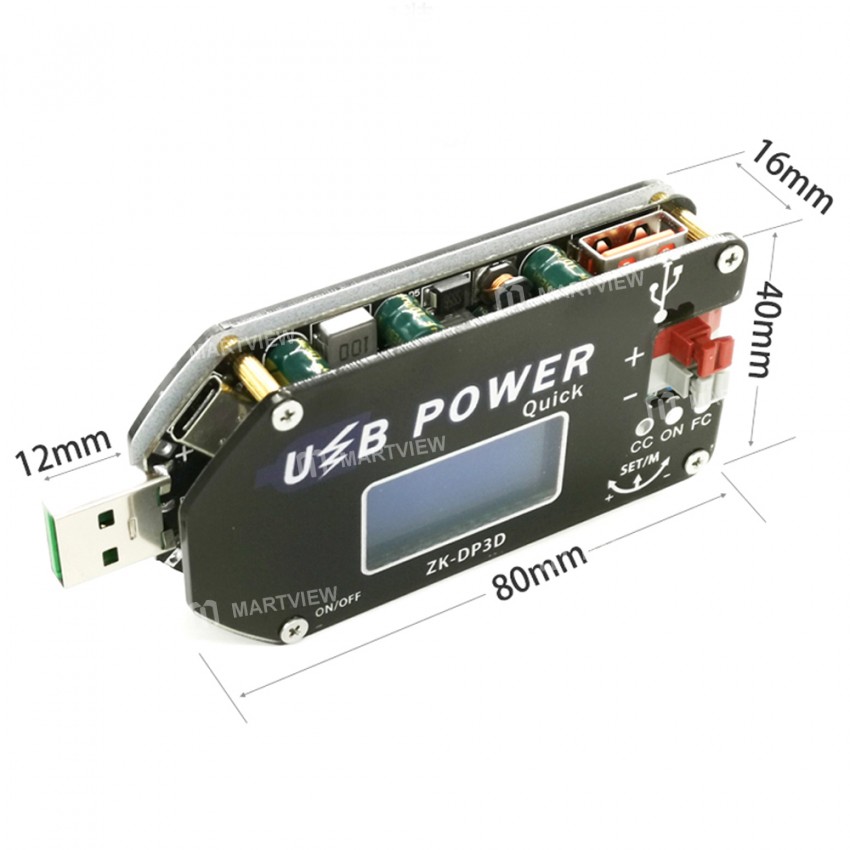

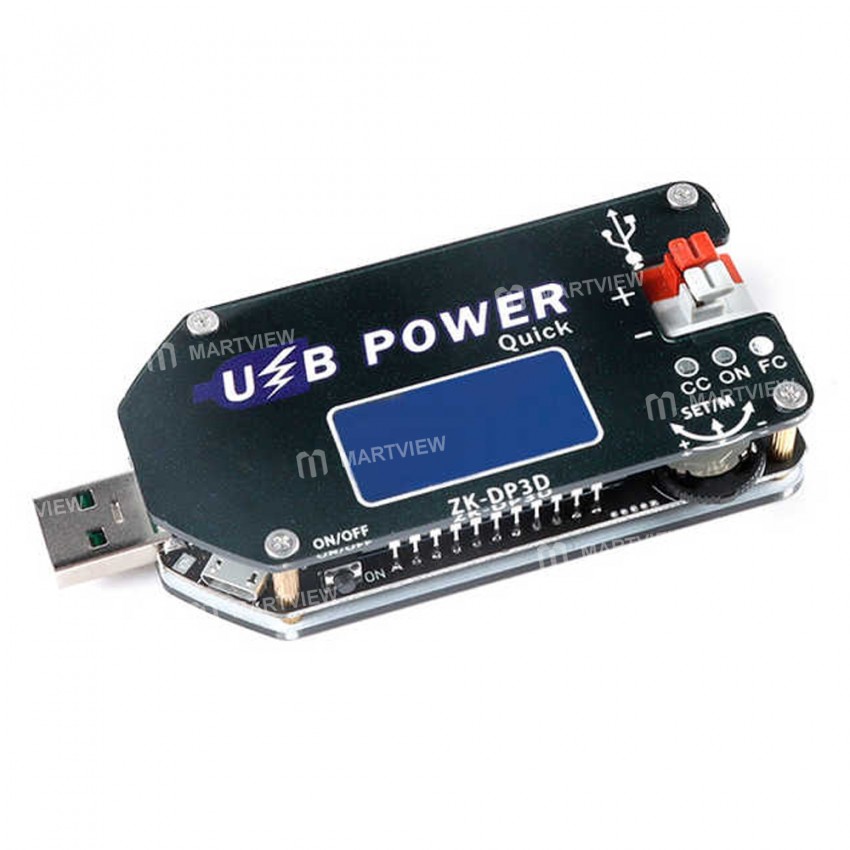

ZK-DP3D 15W CNC USB Type-C DC-DC Adjustable Regulated Power Supply Converter Module

ZK-DP3D 15W CNC USB Type-C DC-DC Adjustable Regulated Power Supply Converter Module

Features:

• Digital control adjusts voltage and current (current limit value), voltage step is 0.01V/0.1V, current step is 0.001A/0.01A, precision adjustment, accurate display.

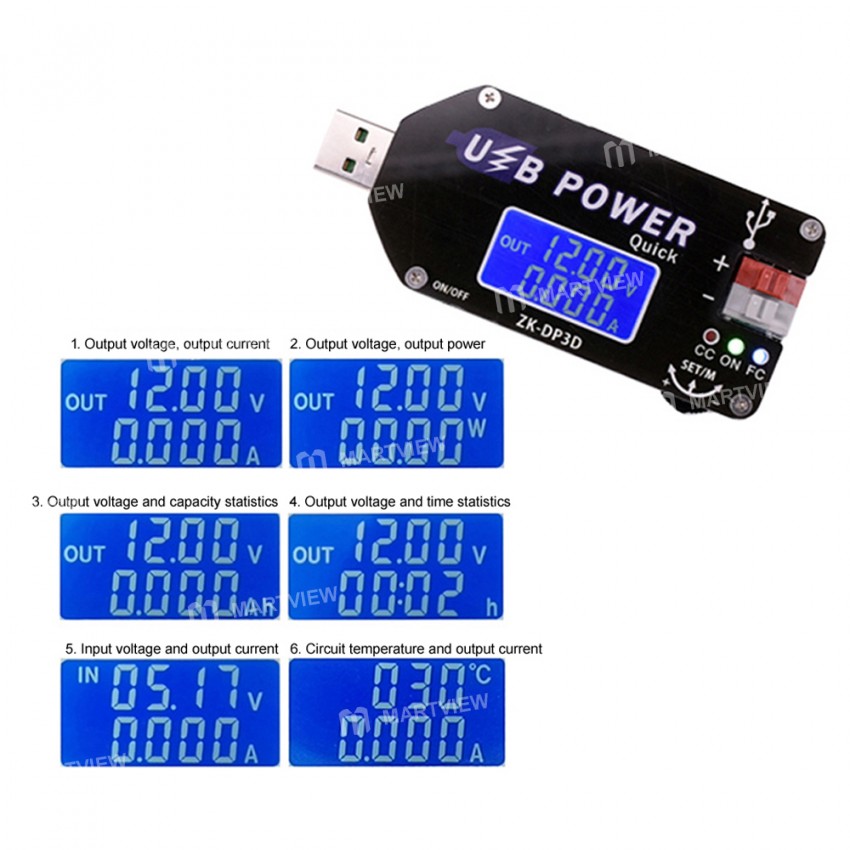

• LCD displays input voltage, output voltage, temperature, current, power, capacity statistics, and time statistics.

• With USB female output, easy to connect USB interface devices such as USB fan

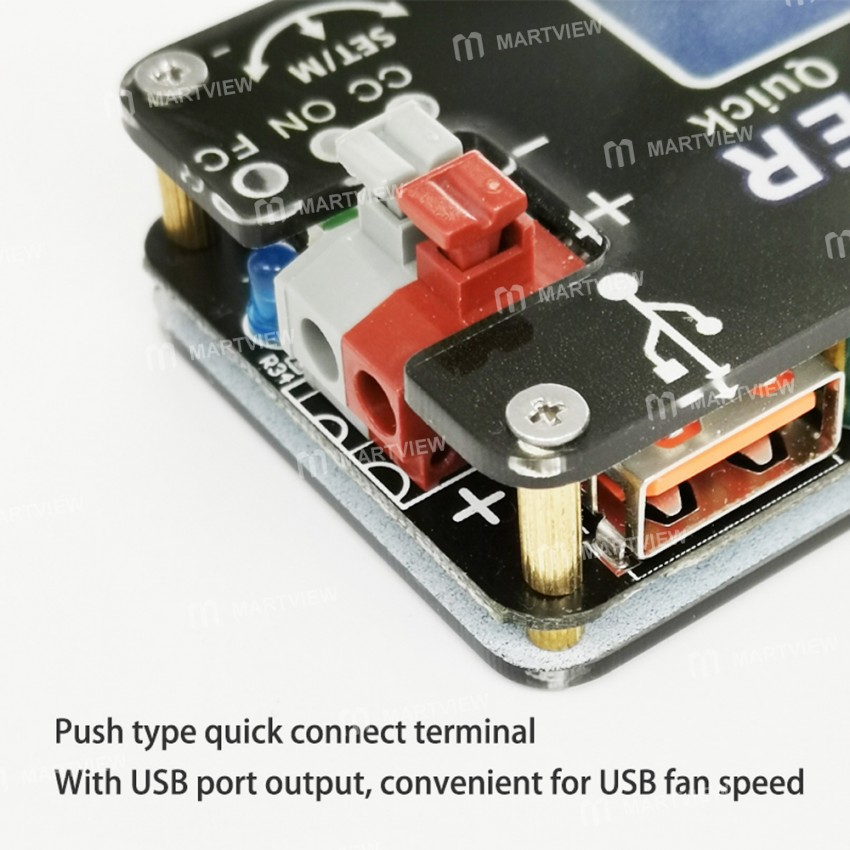

• Free screw quick terminal, push-type cable pull, no need to screw, convenient and fast.

• With intelligent fast charge deception, solve the problem of insufficient power supply to the USB input port. Support mainstream fast charge protocol, QC2.0 3.0, FCP SCP AFC, you can also choose not to deceive or automatically choose the deception mode.

• High power 15W, 2A current, can be used for fan speed regulation, desktop power supply, adjustable charger, router power supply, etc.

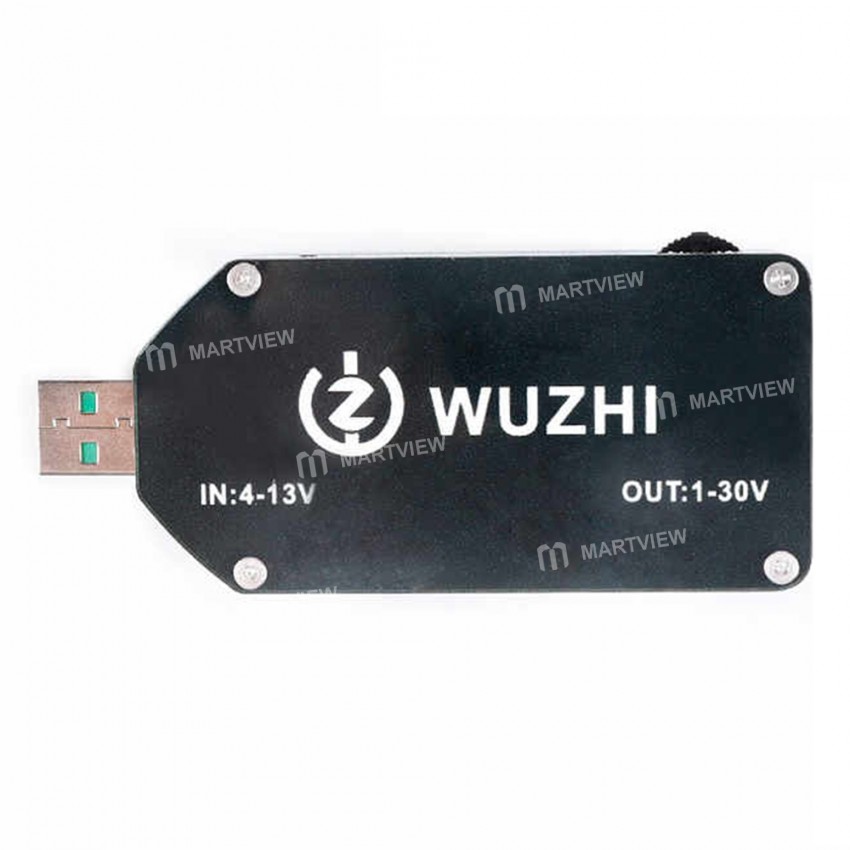

• Adjust the output voltage arbitrarily, limit the current 0-2A (wide input 4-13V, wide output 1-30V any adjustment, with short circuit protection, the short circuit does not burn)

• As a USB charging cable, adjust the charging voltage and maximum charging current arbitrarily (any voltage, with constant current, anti-backflow, to meet the charging of most batteries)

• Multiple protection (short circuit, over current, over temperature, over power, over-voltage protection, charging anti-backflow protection)

Applications:

• Large and small power fan speed controller, USB adjustable desktop small power supply, USB adjustable charging line, router anti-blackout standby power supply, Tmall Wizard mobile power base (with charging treasure), USB adjustable boost line, Dajiang Mech Master Outdoor Battle Router Power Supply

• Combined with the charging treasure, it becomes a mobile adjustable power supply, which is very practical

Fast Charge Deception Use:

• Powered by a 5V charging adapter, the input current is 4A or more to reach 15W (considering the voltage drop on the USB line and the module conversion efficiency, etc.), the ordinary 5V adapter is difficult to do, so the module adds a fast charge deception function to make the adapter output high voltage or High current

• Note that you can choose to have a charger or charging treasure that supports the fast charge protocol

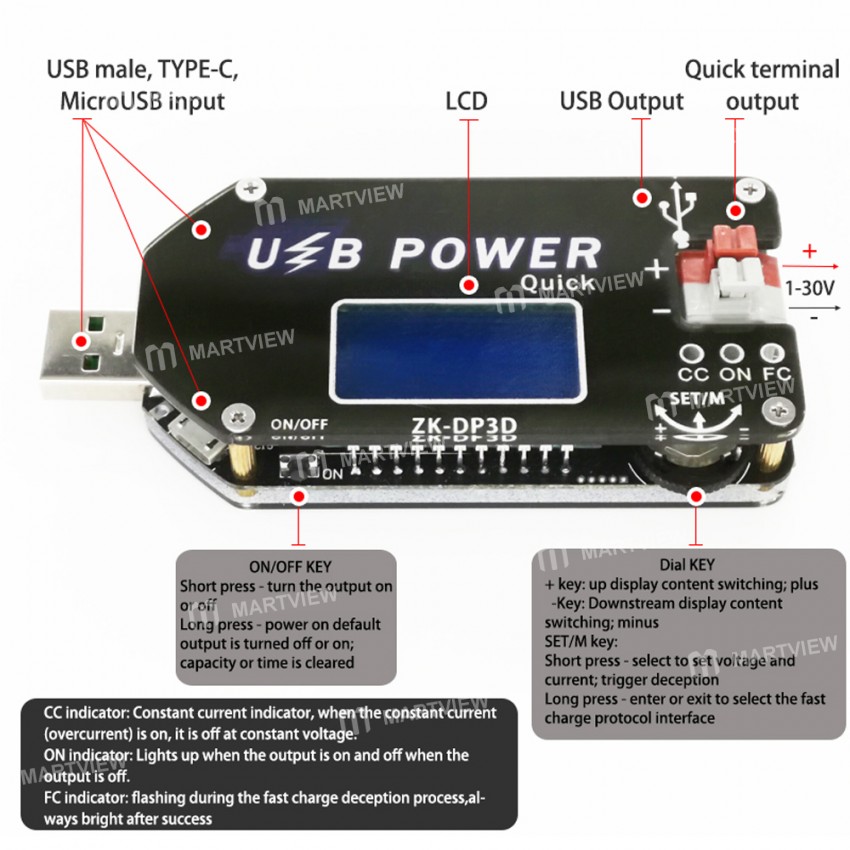

• Press and hold the main button SET/M button of the dial button for more than 3 seconds to automatically enter the fast charging protocol selection interface, and the LCD will display the protocol name

• Press the + and - buttons of the dial button to select QC2.0, QC3.0, AFC, FCP, SCP, AUTO, and OFF. Short press the SET/M button to trigger the protocol. If the trigger is successful, it will display OK, FC blue light is always on, otherwise, Err is displayed, FC blue light is off. Or after selecting the protocol, pressing the SET/M button will trigger a spoofing, and then directly exit the fast charging protocol interface, and the protocol will be triggered each time it is turned on

• If you don't know which protocol the charger supports, you can choose the AUTO mode, the module automatically chooses the spoofing protocol to match; if you don't want to use the spoof function, you can choose OFF mode

Package includes:

• 1 x Module
